Work Positioners

Short Description:

Work Positioners is a type of logistics handling equipment designed for production lines, warehouses, and other environments. Its small size and flexible operation make it highly versatile. The driving mode is available in both manual and semi-electric options. The manual drive is ideal for situatio


Technical Data

Product Tags

Work Positioners is a type of logistics handling equipment designed for production lines, warehouses, and other environments. Its small size and flexible operation make it highly versatile. The driving mode is available in both manual and semi-electric options. The manual drive is ideal for situations where electricity is inconvenient or frequent starts and stops are necessary. It includes a safety device to prevent abnormal rapid sliding.

The Work Positioners Equipped with maintenance-free batteries to reduce costs, the vehicle also features a power display meter and a low-voltage alarm for added convenience. Additionally, a variety of optional fixtures are available, which can be customized to accommodate the shape of different goods, ensuring it meets diverse work requirements.

Technical Data

Model



CTY

CDSD

Config-code



M100

M200

E100A

E150A

Drive Unit



Manual

Semi-electric

Operation type



Pedestrian

Capacity (Q)

kg

100

200

100

150

Load center

mm

250

250

250

250

Overall Length

mm

840

870

870

870

Overall Width

mm

600

600

600

600

Overall Height

mm

1830

1920

1990

1790

Max.Platform height

mm

1500

1500

1700

1500

Min.Platform height

mm

130

130

130

130

Platform size

mm

470x600

470x600

470x600

470x600

Turning radius

mm

850

850

900

900

Lift motor power

KW

\

\

0.8

0.8

Battery (Lithium))

Ah/V

\

\

24/12

24/12

Weight w/o battery

kg

50

60

66

63



Specifications of Work Positioners:

This lightweight and compact Work Positioners has emerged as a rising star in the logistics handling sector, thanks to its unique design, convenient operation, and strong practicality.

In terms of driving mode and load-bearing capacity, it features a walking driving mode that does not require professional driving skills. Operators can easily follow the workstation as it moves, allowing for straightforward and flexible operation. With a rated maximum load capacity of 150kg, it fully meets the daily handling needs for light and small goods while ensuring safety and stability during use.

The compact design measures 870mm in length, 600mm in width, and 1920mm in height, enabling it to maneuver freely in tight spaces, which is ideal for storage and operation. The platform size is 470mm by 600mm, providing ample space for goods. The platform can be adjusted to a maximum height of 1700mm and a minimum height of just 130mm, offering a wide range of height adjustments to accommodate various handling needs.

It offers flexible turning capabilities with two radius options of 850mm and 900mm, ensuring easy maneuverability in narrow or complex environments, thus enhancing handling efficiency.

The lifting mechanism utilizes a semi-electric design with a motor power of 0.8KW, which reduces the burden on the operator while maintaining the equipment's portability.

Equipped with a 24Ah capacity battery controlled by a 12V voltage system, the battery offers a long lifespan, meeting the demands of extended work periods.

With a lightweight design, the workstation vehicle itself weighs only 60kg, making it easy to carry and move. Even a single person can maneuver it with ease, improving the flexibility and mobility of the equipment.

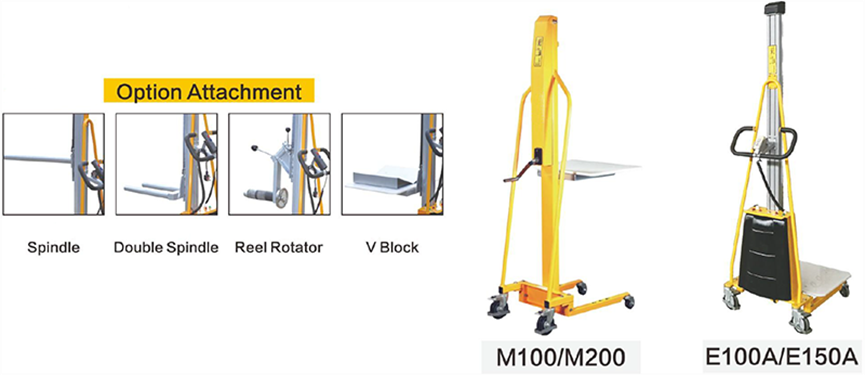

A standout feature of this workstation vehicle is its variety of optional clamps, including single-axis, double-axis, and rotating axis designs. These can be customized to fit the shape and size of different goods, catering to diverse work requirements. The clamps are intelligently designed to securely hold items, preventing dangerous situations such as sliding or falling during transport.
