Two Post Parking Lift Supplier With CE Certification

Short Description:

wo Post Car Lift adopt hydraulic driving methods,hydraulic pump output high pressure oil push the hydraulic cylinder to drive the car packing board up and down,achieve the purpose of parking.When the car parking board to the parking place on the ground,the vehicle can enter or exit.Offer customized


  • Platform size range: 3913mm*2100mm
  • Capacity range: 2300kg-3200kg
  • Max Platform height range: 2100mm(adjustable)
  • Free ocean shipping insurance available
  • Free LCL ocean shipping available at some ports
  • Technical Data

    Optional Configuration

    Details Display

    Real Photo Display

    Product Tags

    Two post parking lift is used in home garages, auto repair shops, and car sales centers. In addition to two post car lift,there are other types of parking lift. Car lift makes reasonable use of the space location. Auto lift is installed in one place, which can accommodate more cars. And if your site is bigger and wants to accommodate more cars, you can consider our four post parking lift,which can provide you with customized services.

    Which one is more suitable for your venue and needs, tell us, and we will send you the specific information by email.

    FAQ

    Q: Does the platform adopt a non-slip design?

    A: Our two-post lift platform uses the anti-skid design of galvanized corrugated plates and pattern steel ramps.

    Q: How to fix the parking equipment on the ground?

    A: To ensure safety, 18 cm long bolts are used to fix the columns on the ground in hydraulic lift.

    Q: Is it convenient to install the double-post lift?

    A: Yes, our products will be equipped with a user manual, follow the steps according to the manual to successfully install.

    Q: Can the quality of your products be trusted?

    A: You can trust the quality of our products, we have obtained the EU certification.

    Video

    Specifications

    Model

    TPL2321

    TPL2721

    TPL3221

    Lifting Capacity

    2300KG

    2700KG

    3200KG

    Lifting Height

    2100 mm

    2100 mm

    2100 mm

    Drive Through Width

    2100mm

    2100mm

    2100mm

    Post Height

    3010 mm

    3500 mm

    3500 mm

    Weight

    1050kg

    1150kg

    1250kg

    Product Size

    4016*2565*3010mm

    4242*2565*3500mm

    4242*2565*3500mm

    Package Dimension

    3800*800*800mm

    3850*1000*970mm

    3850*1000*970mm

    Surface Finish

    Powder Coating

    Powder Coating

    Powder Coating

    Operation mode

    Automatic (Push Button)

    Automatic (Push Button)

    Automatic (Push Button)

    Rise/Drop time

    50s/40s

    50s/40s

    50s/40s

    Motor capacity

    2.2KW

    2.2KW

    2.2KW

    Cylinder

    Italy Aston seal ring, double high pressure resin tubing, 100% no oil leakage

    Voltage (V)

    As per customer local standard

    Test

    125% dynamic load test and 150% static load test

    Loading Qty 20/40

    10pcs/20pcs

    Why Choose Us

    As a professional two post parking lift supplier, we have provided professional and safe lifting equipment to many countries around the world, including the United Kingdom, Germany, the Netherlands, Serbia, Australia, Saudi Arabia, Sri Lanka, India, New Zealand, Malaysia, Canada and others nation. Our equipment takes into account the affordable price and excellent work performance. In addition, we can also provide perfect after-sales service. There is no doubt that we will be your best choice!

    Dual-cylinder lifting system:

    The design of the double-cylinder lifting system ensures the stable lifting of the equipment platform.

    Back shield:

    The design of the tailgate can ensure that the car is safely parked on the platform.

    Emergency button:

    In case of emergency during work, the equipment can be stopped.

    72

    Small footprint:

    The ceiling height of 3.5m~4.1m can park 2 cars at the same time.

    Balance safety chain:

    The equipment is installed with a high-quality balanced safety chain

    High-quality hydraulic pump station:

    Ensure the stable lifting of the platform and a long service life.

    Advantages

    Galvanized Wave Plate:

    The table top of the platform is made up of multiple galvanized corrugated plates, which has a non-slip effect.

    Bending Side:

    The side baffle is designed with a curved shape to prevent the tire from being scratched.

    Multi mechanical lock:

    The equipment is designed with multiple mechanical locks, which can fully guarantee the safety when parking.

    Bolt fixing:

    Use 18 cm long bolts to fix the equipment in contact with the ground.

    Limited switch:

    The design of the limit switch prevents the platform from exceeding the original height during the lifting process, ensuring safety.

    Waterproof protection measures:

    Our products have made waterproof protection measures for hydraulic pump stations and oil tanks, and they have been used for a long time.



    Applications

    Case1

    One of our Canadian customers bought two post lift for home parking. He has two cars at home but only one indoor parking space. He didn’t want any of the cars to be outdoors, so he bought a parking system for his two cars. Both can be parked indoors. The system uses a hydraulic direct drive two-stage double-cylinder lifting system, and uses a chain to balance the system, making the use process safer and more reliable. Car parking lift is relatively simple, the noise is low ,the floor space is small, and the beautiful appearance will also make the space look better.

    1

    Case2

    Our British customer bought garage equipment for his auto repair shop to place cars, because his auto repair shop is not very large, so he bought our two-post parking equipment to store more vehicles for maintenance, in order to make it more convenient for him, the parking column he purchased is equipped with a remote control, so that he can control the lifting of the vehicle at any time, which greatly improves his work efficiency. Our parking system has been well received by him.

    2
    5
    4

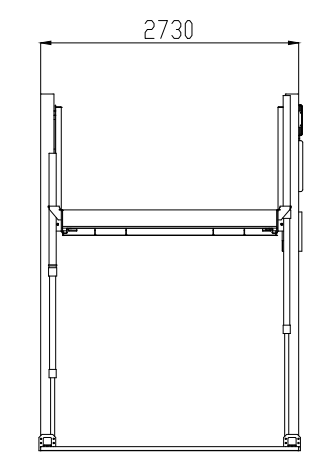

    Technical Drawing

    (Model: DXTPL2321,suitable for car and SUV)

    20
    24

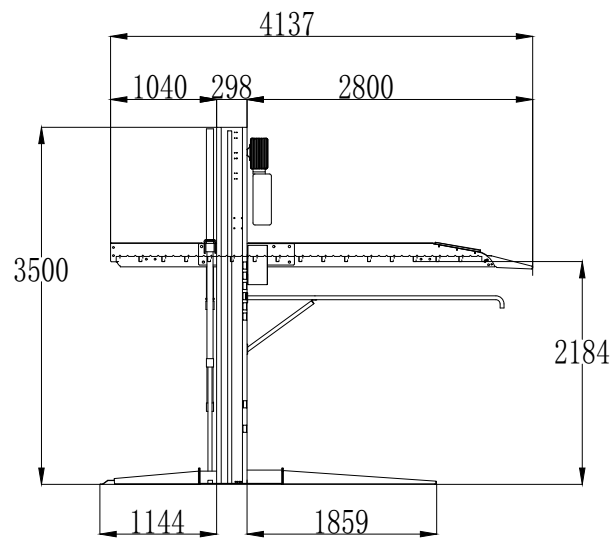

    Technical Drawing

    (Model: DXTPL2721,suitable for car and SUV)

    Technical Drawing

    (Model: DXTPL3221,suitable for car and SUV)


  • Previous:
  • Next:

  • Item

    Remote control

    Metal rain cover

    (for pump station)

    Warning light




    Features & advantages:

    1. Easy and fast installation,simple operation,safe and reliable,ultra low noise
    2. Less space occupation,3.5m~4.1m ceiling height is enough for parking 2 cars
    3. Both suitable for home use and public use,beautiful and fashionable in appearance.
    4. Two stage dual-Cylinder lifting system, Hydraulic direct driven, chain-balancing system.
    5. Electric lock release system. Multi-levels locking system (7 holes) for different adjustable parking heights, Operational remote control.

    High polymer polyethylene slide blocks, self-lubricating, wear-resistance and high temperature resistance.

    Water Proof Control Panel

    Water Proof Electric Cabin

    Sliding Pad

    Pump Station Inside the Rain Cover

    Oil Tank (Optional Plastic/Metal)

    2pcs inverted cylinders on 2posts

    Galvanized Wave Plate

    Bending Side to protect the car tire

    Back shield in case of driving out

    Checkered Steel Ramp

    Two sides lead rails to be conjoined

    Multi mechanical lock for safety

    Limited switch for safety precaution

    Balance safety chain

    Spring wire for lifting up/down

    Stable supporting legs

    Fixed on ground by 18cm bolt

    Optional warning light
