Small Forklift

Short Description:

Small Forklift also refer to the electric stacker with a wide field of view. Unlike conventional electric stackers, where the hydraulic cylinder is positioned in the center of the mast, this model places the hydraulic cylinders on both sides. This design ensures that the operator's front view remain


Technical Data

Product Tags

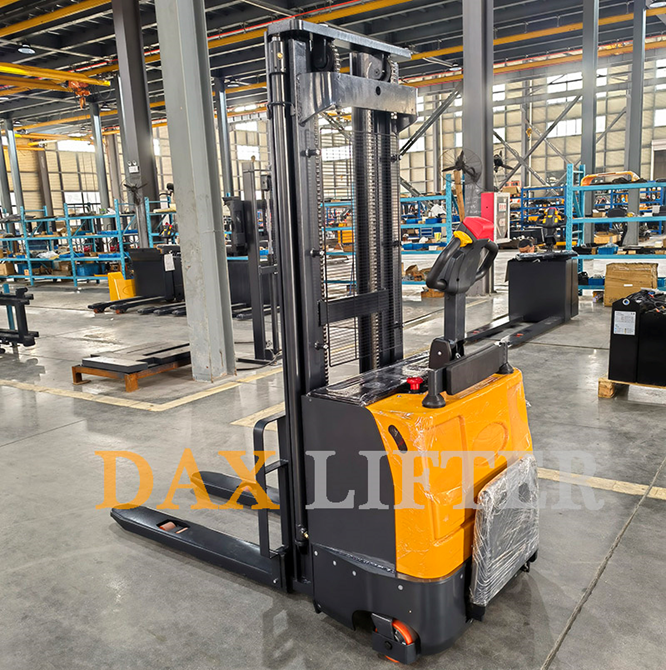

Small Forklift also refer to the electric stacker with a wide field of view. Unlike conventional electric stackers, where the hydraulic cylinder is positioned in the center of the mast, this model places the hydraulic cylinders on both sides. This design ensures that the operator's front view remains unobstructed during lifting and lowering, providing a significantly wider field of vision. The stacker is equipped with a CURTIS controller from the U.S. and a REMA battery from Germany. It offers two rated load options: 1500kg and 2000kg.

Technical Data

Model



CDD-20

Config-code

W/O pedal& handrail



B15/B20

With pedal& handrail



BT15/BT20

Drive Unit



Electric

Operation Type



Pedestrian/Standing

Load capacity(Q)

Kg

1500/2000

Load center(C)

mm

600

Overall Length (L)

mm

1925

Overall Width (b)

mm

940

Overall Height (H2)

mm

1825

2025

2125

2225

2325

Lift height (H)

mm

2500

2900

3100

3300

3500

Max working height(H1)

mm

3144

3544

3744

3944

4144

Fork dimension (L1*b2*m)

mm

1150x160x56

Lowered fork height (h)

mm

90

MAX Fork Width (b1)

mm

540/680

Turning radius (Wa)

mm

1560

Drive Motor Power

KW

1.6AC

Lift Motor Power

KW

2./3.0

Battery

Ah/V

240/24

Weight w/o battery

Kg

875

897

910

919

932

Battery weight

kg

235

Specifications of Small Forklift:

This wide-view electric Small Forklift enables operators to accurately judge the vehicle's trajectory and the position of goods in narrow warehouse aisles or complex working environments. The clear and unobstructed front view helps prevent collisions and operational errors.

Regarding lifting height, this Small Forklift offers five flexible options, with a maximum height of 3500mm, fully meeting the varied material handling requirements across different storage environments. Whether storing and retrieving goods on high-rise shelves or moving between the ground and shelving, the Small Forklift performs effortlessly, greatly enhancing the flexibility and efficiency of logistics operations.

Additionally, the vehicle's fork has a minimum ground clearance of just 90mm, a precise design that improves handling when transporting low-profile goods or performing accurate positioning. The compact body, with a turning radius of only 1560mm, allows the Small Forklift to maneuver easily in tight spaces, ensuring smooth and efficient operation.

In terms of power, the Small Forklift is equipped with a 1.6KW high-efficiency drive motor, providing strong and stable output, ensuring reliable performance under various working conditions. The battery capacity and voltage remain at 240AH 12V, offering sufficient endurance for long-term operation.

Moreover, the vehicle's rear cover is designed with user convenience in mind. The spacious rear cover not only allows operators to easily access and inspect internal components but also simplifies daily maintenance tasks, making them quick and straightforward.
