Single Mast Pallet Stacker

Short Description:

Single Mast Pallet Stacker has become an essential piece of equipment in modern logistics and warehousing, thanks to its compact design, efficient imported hydraulic system, intelligent control system, and comprehensive safety features. With a simple and intuitive operation interface, this Single Ma


Technical Data

Product Tags

Single Mast Pallet Stacker has become an essential piece of equipment in modern logistics and warehousing, thanks to its compact design, efficient imported hydraulic system, intelligent control system, and comprehensive safety features. With a simple and intuitive operation interface, this Single Mast Pallet Stacker is light, compact, and ideal for use in small spaces.

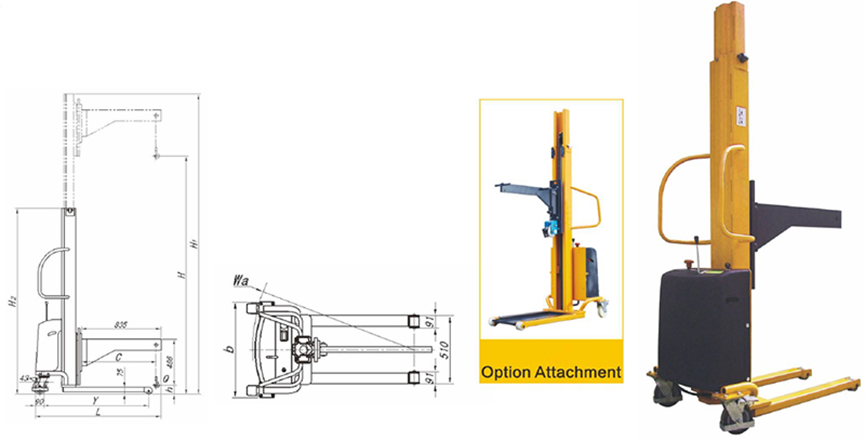

Technical Data

Model



CDSD

Config-code



D05

Drive Unit



Semi-electric

Operation type



Pedestrian

Capacity (Q)

kg

500

Load center(C)

mm

785

Overall Length (L)

mm

1320

Overall Width (b)

mm

712

Overall Height (H2)

mm

1950

Lift height (H)

mm

2500

Max working height(H1)

mm

3153

Min.leg height (h)

mm

75

Min.steeve height

mm

580

Max.steeve height

mm

2986

Steeve length

mm

835

Maximum leg width(b1)

mm

510

Turning radius (Wa)

mm

1295

Lift Motor Power

KW

1.5

Battery

Ah/V

120/12

Weight w/o battery

kg

290

Battery weight

kg

35

Specifications of Single Mast Pallet Stacker:

The Single Mast Pallet Stacker stands as an innovative masterpiece in the logistics and warehousing field. Its unique single-mast structure provides exceptional stability, ensuring the stacker remains steady and shake-free during high-altitude operations. This design also enhances the equipment's flexibility, allowing it to easily navigate through tight corners and narrow passages within the warehouse.

A notable feature is the stacker's increased lifting height, now reaching up to 2500mm. This breakthrough enables it to access high-level shelves, significantly improving warehouse storage space utilization. With a load capacity of 500kg, the Single Mast Pallet Stacker is well-equipped to handle heavy-duty cargo, whether it involves pallet stacking or transporting bulk goods.

The stacker’s power system incorporates an imported, high-end hydraulic station, ensuring the hydraulic system's stability and efficiency while greatly boosting the equipment's overall performance and reliability. With a robust 1.5KW lifting power, the stacker efficiently completes lifting and lowering tasks, substantially enhancing work productivity.

Additionally, the Single Mast Pallet Stacker features a 120Ah lead-acid maintenance-free battery, offering long-lasting endurance and a stable power supply for extended operations. The maintenance-free design minimizes ongoing maintenance costs, making the stacker more convenient and economical to use.

For charging, the Single Mast Pallet Stacker is equipped with the REMA intelligent charging plug-in from Germany. This high-end charging solution not only provides efficient and safe charging performance but also includes intelligent charging management functions. It automatically adjusts the charging current and voltage based on the battery’s status, ensuring optimal charging conditions at all times.
