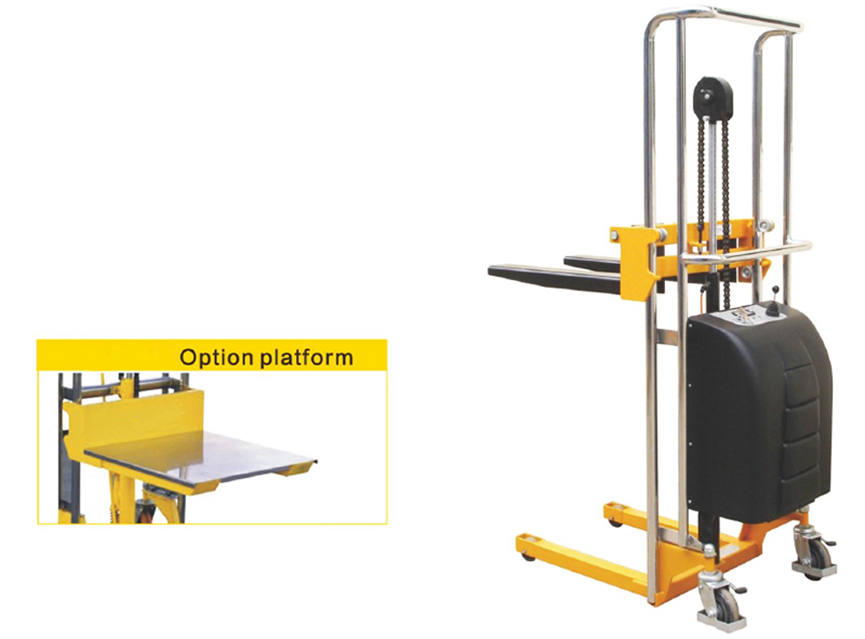

Semi Electric Pallet Stacker

Short Description:

Semi Electric Pallet Stacker is a type of electric stacker that combines the flexibility of manual operation with the high efficiency of electric power, making it particularly well-suited for use in narrow passages and confined spaces. Its greatest advantage lies in the simplicity and speed of its l


Technical Data

Product Tags

Semi Electric Pallet Stacker is a type of electric stacker that combines the flexibility of manual operation with the high efficiency of electric power, making it particularly well-suited for use in narrow passages and confined spaces. Its greatest advantage lies in the simplicity and speed of its lifting operations. Equipped with maintenance-free batteries and a low-voltage alarm function, it ensures reliable performance with minimal upkeep. Typically, it has a smaller rated load capacity, such as 200kg or 400kg.

Technical Data

Model



CDSD

Config-code

Fixed fork



EF2085

EF2120

EF4085

EF4120

EF4150

Adjustable fork



EJ2085

EJ2085

EJ4085

EJ4120

EJ4150

Drive Unit



Semi-electric

Operation type



Pedestrian

Capacity

kg

200

200

400

400

400

Load center

mm

320

320

350

350

350

Overall Length

mm

1020

1020

1100

1100

1100

Overall Width

mm

560

560

590

590

590

Overall Height

mm

1080

1435

1060

1410

1710

Lift height

mm

850

1200

850

1200

1500

Lowered fork height

mm

80

Fork dimension

mm

600x100

600x100

650x110

650x110

650x110

MAX Fork Width

EF

mm

500

500

550

550

550

EJ

215-500

215-500

235-500

235-500

235-500

Turning radius

mm

830

830

1100

1100

1100

Lift motor power

KW

0.8

Battery

Ah/V

70/12

Weight w/o battery

kg

98

103

117

122

127

Platform Model(Optional



LP10

LP10

LP20

LP20

LP20

Platform size(LxW)

MM

610x530

610x530

660x580

660x580

660x580

Specifications of Semi Electric Pallet Stacker:

Semi Electric Pallet Stacker is a versatile logistics handling tool that combines flexibility with efficiency, solidifying its critical role in modern logistics and warehousing.

This Semi Electric Pallet Stacker is available in two configurations: fixed forks and adjustable forks, catering to the handling needs of various goods in different sizes and shapes. Users can easily choose the most suitable fork type based on their specific operational requirements, ensuring precise handling. Additionally, with five available models, users have diverse options to match their space constraints, load requirements, and budget considerations, ensuring the best fit for their needs.

Renowned for its compact size (11005901410mm), the Semi Electric Pallet Stacker maneuvers effortlessly through narrow warehouse aisles and complex working environments. The semi-electric drive system combined with pedestrian operation allows operators to control the Pallet Stacker with ease, achieving precise stacking and handling of goods. With a maximum load capacity of 400kg, it is well-suited to handle most light to medium-weight cargo.

To accommodate different handling needs, the Semi Electric Pallet Stacker offers two platform styles: fork type and platform type. The fork type is ideal for rapid stacking and handling of palletized goods, while the platform type is better suited for non-standard or bulk items. The platform is available in sizes of 610530mm and 660580mm, ensuring the stability and safety of goods during transport.

The lifting height ranges from 850mm to 1500mm, covering the height of most warehouse shelves, allowing operators to easily place goods in designated locations. Additionally, with two turning radius options (830mm and 1100mm), the Semi Electric Pallet Stacker offers flexible operation in varying space environments, ensuring maneuverability in tight spaces.

Power-wise, the lifting motor's 0.8KW output provides ample power to handle various load conditions effectively. The 70Ah battery capacity, paired with 12V voltage control, ensures long battery life and stable performance, even during continuous operation, maintaining high work efficiency.

The Semi Electric Pallet Stacker's weight ranges from 100kg to 130kg, making it lightweight and easy for operators to lift and move, reducing physical strain and operational difficulty. The modular design further simplifies daily maintenance and troubleshooting, reducing both maintenance costs and downtime.
