Robot Vacuum Lifter Crane

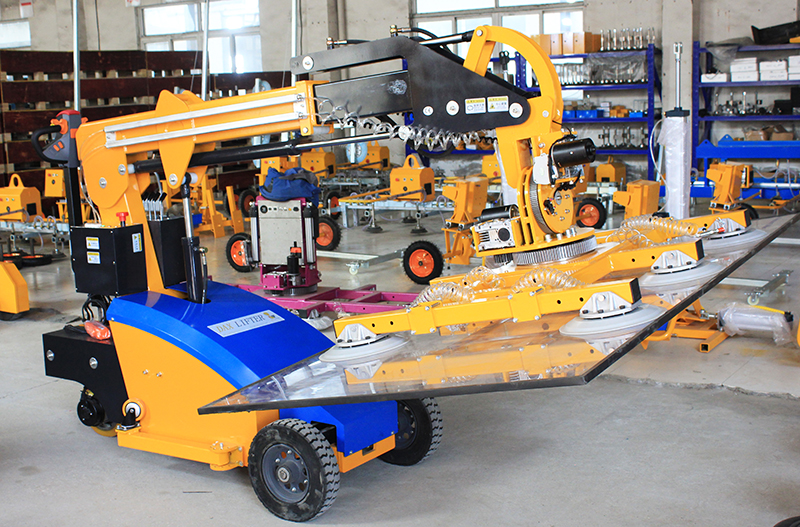

Robot Vacuum Lifter Crane is a portable glazing robot designed for efficient and precise handling. It is equipped with 4 to 8 independent vacuum suction cups, depending on the load capacity. These suction cups are made of high-quality rubber to ensure a secure grip and stable handling of materials such as glass, marble, and other flat plates during transportation and installation.
The robot arm enables the suction cup frame to move vertically, rotate, and flip, offering exceptional flexibility for precise handling and complex movements. These capabilities make this glass lifter ideal for construction and assembly tasks. It is well-suited for handling, transporting, loading, unloading, and installing flat plates like glass, marble, slate, and steel in factories and warehouses.
Technical Data
|
Model |
DXGL-LD 300 |
DXGL-LD 400 |
DXGL-LD 500 |
DXGL-LD 600 |
DXGL-LD 800 |
|
Capacity（kg） |
300 |
400 |
500 |
600 |
800 |
|
Manual rotation |
360° |
||||
|
Max lifting height(mm) |
3500 |
3500 |
3500 |
3500 |
5000 |
|
Operation method |
walking style |
||||
|
Battery(V/A) |
2*12/100 |
2*12/120 |
|||
|
Charger(V/A) |
24/12 |
24/15 |
24/15 |
24/15 |
24/18 |
|
walk motor(V/W) |
24/1200 |
24/1200 |
24/1500 |
24/1500 |
24/1500 |
|
Lift motor(V/W) |
24/2000 |
24/2000 |
24/2200 |
24/2200 |
24/2200 |
|
Width(mm) |
840 |
840 |
840 |
840 |
840 |
|
Length(mm) |
2560 |
2560 |
2660 |
2660 |
2800 |
|
Front wheel size/quantity(mm) |
400*80/1 |
400*80/1 |
400*90/1 |
400*90/1 |
400*90/2 |
|
Rear wheel size/quantity(mm) |
250*80 |
250*80 |
300*100 |
300*100 |
300*100 |
|
Suction cup size/quantity(mm) |
300 / 4 |
300 / 4 |
300 / 6 |
300 / 6 |
300 / 8 |
