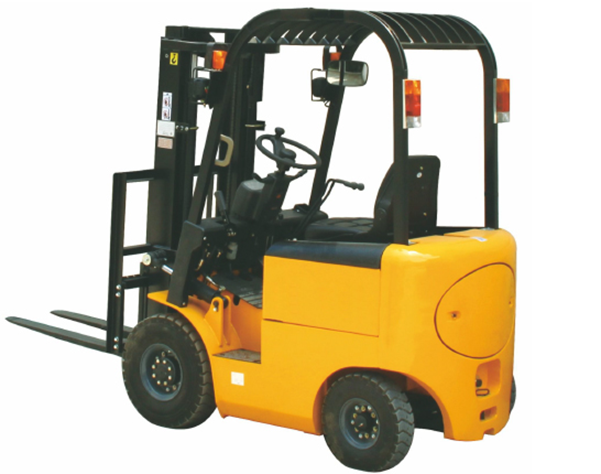

Portable Electric Forklift

Short Description:

Portable Electric Forklift features four wheels, offering greater stability and load-bearing capacity compared to traditional three-point or two-point forklifts. This design reduces the risk of overturning due to shifts in the center of gravity. A key feature of this four-wheel electric forklift is


Technical Data

Product Tags

Portable Electric Forklift features four wheels, offering greater stability and load-bearing capacity compared to traditional three-point or two-point forklifts. This design reduces the risk of overturning due to shifts in the center of gravity. A key feature of this four-wheel electric forklift is its wide-view mast, which enhances the driver’s field of vision. This allows the operator to see the goods, surrounding environment, and obstacles more clearly, facilitating easier and safer movement of goods to designated locations without concerns about obstructed vision or restricted operation. The adjustable steering wheel and comfortable seat enable the operator to select the optimal driving position based on individual needs. The dashboard is thoughtfully arranged, allowing the driver to quickly assess the vehicle’s operational status.

Technical Data

Model



CPD

Config-code



QC20

Drive Unit



Electric

Operation Type



Seated

Load capacity(Q)

Kg

2000

Load center(C)

mm

500

Overall Length (L)

mm

3361

Overall length(without fork)(L3)

mm

2291

Overall width(front/rear) (b/b’)

mm

1283/1180

Lift height (H)

mm

3000

Max working height(H2)

mm

3990

Min.mast height(H1)



2015

Overhead guard height (H3)

mm

2152

Fork dimension (L1*b2*m)

mm

1070x122x40

MAX Fork Width (b1)

mm

250-1000

Minimum ground clearancem1

mm

95

Min.right angle aisle width(Palet:1000x1200Horzoral )

mm

3732

Min.right angle aisle width(Palet:800x1200 Vertical )

mm

3932

Mast obliquity(a/β)

°

5/10

Turning radius (Wa)

mm

2105

Drive Motor Power

KW

8.5AC

Lift Motor Power

KW

11.0AC

Battery

Ah/V

600/48

Weight w/o battery

Kg

3045

Battery weight

kg

885

Specifications of Portable Electric Forklift:

Portable electric forklift, compared to models such as the CPD-SC, CPD-SZ, and CPD-SA, demonstrates unique advantages and adaptability, making it particularly well-suited for use in spacious warehouses and worksites.

Firstly, its load capacity has been significantly increased to 1500kg, a substantial improvement over the other models mentioned, allowing it to handle heavier goods and meet higher-intensity handling needs. With overall dimensions of 2937mm in length, 1070mm in width, and 2140mm in height, this forklift offers a solid foundation for stable operation and load-bearing. However, this larger size also requires more operating space, making it ideal for spacious environments.

The forklift offers two lifting height options: 3000mm and 4500mm, providing users with greater flexibility. The higher lifting height enables efficient handling of multi-layer shelves, improving warehouse space utilization. The turning radius is 1850mm, which, while larger than other models, enhances stability during turns, reducing the risk of rollover—especially beneficial in spacious warehouses and worksites.

With a battery capacity of 400Ah, the largest among the three models, and a 48V voltage control system, this forklift is equipped for extended endurance and powerful output, ideal for long-term, high-intensity operations. The drive motor is rated at 5.0KW, the lifting motor at 6.3KW, and the steering motor at 0.75KW, providing ample power for all functions. Whether driving, lifting, or steering, the forklift quickly responds to the operator's commands, ensuring efficient performance.

The fork size is 90010035mm, with an adjustable outer width ranging from 200 to 950mm, allowing the forklift to accommodate goods and shelves of varying widths. The minimum required stacking aisle is 3500mm, necessitating sufficient space in the warehouse or worksite to meet the forklift's operating needs.
