Pallet Truck

Short Description:

Pallet Truck is a fully electric stacker featuring a side-mounted operating handle, which provides the operator with a wider working field. The C series is equipped with a high-capacity traction battery that offers long-lasting power and an external intelligent charger. In contrast, the CH series co


Technical Data

Product Tags

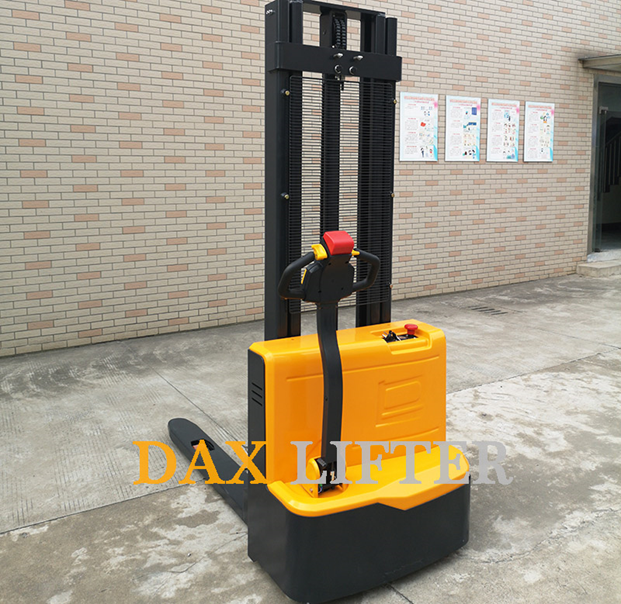

Pallet Truck is a fully electric stacker featuring a side-mounted operating handle, which provides the operator with a wider working field. The C series is equipped with a high-capacity traction battery that offers long-lasting power and an external intelligent charger. In contrast, the CH series comes with a maintenance-free battery and a built-in intelligent charger. The secondary mast is constructed from high-strength steel, ensuring durability. Load capacities are available in 1200kg and 1500kg, with a maximum lifting height of 3300mm.

Technical Data

Model



CDD20

Config-code



C12/C15

CH12/CH15

Drive Unit



Electric

Electric

Operation Type



Pedestrian

Pedestrian

Load capacity(Q)

Kg

1200/1500

1200/1500

Load center(C)

mm

600

600

Overall Length (L)

mm

2034

1924

Overall Width (b)

mm

840

840

Overall Height (H2)

mm

1825

2125

2225

1825

2125

2225

Lift height (H)

mm

2500

3100

3300

2500

3100

3300

Max working height(H1)

mm

3144

3744

3944

3144

3744

3944

Lowered fork height (h)

mm

90

90

Fork dimension (L1*b2*m)

mm

1150x160x56

1150x160x56

MAX Fork Width (b1)

mm

540/680

540/680

Min.aisle width for stacking(Ast)

mm

2460

2350

Turning radius (Wa)

mm

1615

1475

Drive Motor Power

KW

1.6AC

0.75

Lift Motor Power

KW

2.0

2.0

Battery

Ah/V

210124

100/24

Weight w/o battery

Kg

672

705

715

560

593

603

Battery weight

kg

185

45

Specifications of Pallet Truck:

This Pallet Truck is equipped with the American CURTIS controller, a renowned brand in the industry known for its stable and reliable performance. The CURTIS controller ensures precise control and stability during operation, providing a solid foundation for efficient functionality. Additionally, the hydraulic pump station features imported components from the United States, which enhances the smoothness and safety of lifting and lowering actions through its low noise and excellent sealing performance, effectively extending the equipment's service life.

In terms of design, the Pallet Truck ingeniously installs the operating handle on the side, transforming the operation mode of traditional stackers. This side-mounted handle allows the operator to maintain a more natural standing posture, providing an unobstructed view of the surrounding environment for safer operation. This design also significantly reduces the physical strain on the operator, making long-term use easier and more labor-saving.

Regarding power configuration, this Pallet Truck offers two options: the C series and the CH series. The C series is equipped with a 1.6KW AC drive motor, delivering powerful performance suitable for high-efficiency operations. In contrast, the CH series features a 0.75KW drive motor, which, while slightly less powerful, is more energy-efficient and environmentally friendly, making it ideal for light loads or short-distance tasks. Regardless of the series, the lifting motor power is set at 2.0KW, ensuring rapid and stable lifting actions.

This all-electric Pallet Truck also offers exceptional cost performance. Despite maintaining high-quality configurations and performance, the price is kept within a reasonable range through optimized production processes and cost control, allowing more companies to afford and benefit from electric stackers.

Additionally, the Pallet Truck boasts excellent flexibility and adaptability. With a minimum stacking channel width of just 2460mm, it can maneuver easily and operate efficiently in warehouses with limited space. The fork's minimum height from the ground is only 90mm, providing great convenience for handling low-profile goods.
