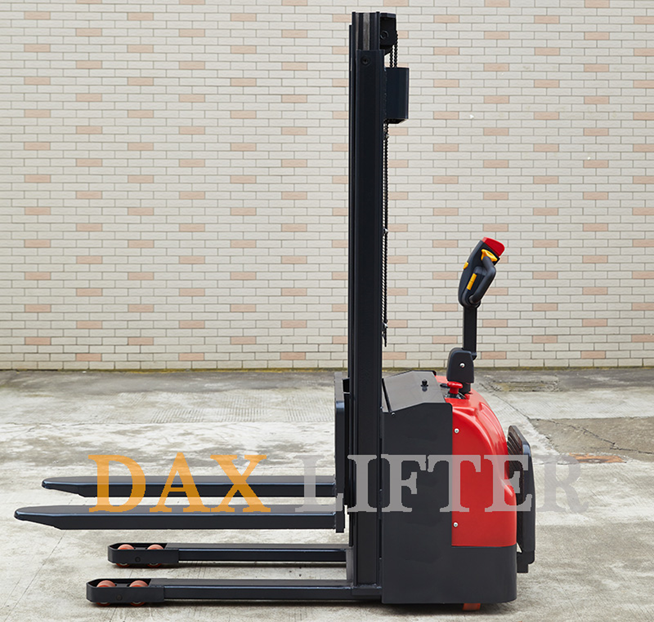

Mini Pallet Truck

Short Description:

Mini Pallet Truck is an economical all-electric stacker that offers high cost performance. With a net weight of just 665kg, it is compact in size yet boasts a load capacity of 1500kg, making it suitable for most storage and handling needs. The centrally positioned operating handle ensures ease of us


Technical Data

Product Tags

Mini Pallet Truck is an economical all-electric stacker that offers high cost performance. With a net weight of just 665kg, it is compact in size yet boasts a load capacity of 1500kg, making it suitable for most storage and handling needs. The centrally positioned operating handle ensures ease of use and stability during operation. Its small turning radius is ideal for maneuvering in narrow passages and tight spaces. The body features an H-shaped steel gantry constructed using a pressing process, ensuring sturdiness and durability.

Technical Data

Model



CDD20

Config-code



SH12/SH15

Drive Unit



Electric

Operation Type



Pedestrian

Load capacity(Q)

Kg

1200/1500

Load center(C)

mm

600

Overall Length (L)

mm

1773/2141(pedal off/on)

Overall Width (b)

mm

832

Overall Height (H2)

mm

1750

2000

2150

2250

Lift height (H)

mm

2500

3000

3300

3500

Max working height(H1)

mm

2960

3460

3760

3960

Fork dimension (L1*b2*m)

mm

1150x160x56

Lowered fork height (h)

mm

90

MAX Fork Width (b1)

mm

540/680

Min.aisle width for stacking(Ast)

mm

2200

Turning radius (Wa)

mm

1410/1770 (pedal off/on)

Drive Motor Power

KW

0.75

Lift Motor Power

KW

2.0

Battery

Ah/V

100/24

Weight w/o battery

Kg

575

615

645

665

Battery weight

kg

45

Specifications of Mini Pallet Truck:

Although the pricing strategy of this economical all-electric Mini Pallet Truck is more affordable than that of high-end models, it does not compromise on product quality or key configurations. On the contrary, this Mini Pallet Truck was designed with a keen balance between user needs and cost-effectiveness, earning market favor with its exceptional value.

First and foremost, the maximum load capacity of this economical all-electric Mini Pallet Truck reaches 1500kg, making it well-suited for handling heavy objects in most storage environments. Whether dealing with bulky goods or stacked pallets, it manages effortlessly. Additionally, its maximum lifting height of 3500mm allows for efficient and precise storage and retrieval operations, even on higher shelves.

The fork design of this Mini Pallet Truck exemplifies a blend of user-friendliness and practicality. With a minimum fork height of just 90mm, it is ideal for transporting low-profile goods or performing precise positioning tasks. Furthermore, the fork's outer width offers two options—540mm and 680mm—to accommodate various pallet sizes and types, enhancing the equipment's versatility and adaptability.

Mini Pallet Truck also excels in steering flexibility, providing two turning radius specifications of 1410mm and 1770mm. Users can select the appropriate configuration based on their actual working environment, ensuring nimble maneuverability in narrow aisles or complex layouts, allowing for successful completion of handling tasks.

Regarding the power system, the Mini Pallet Truck features an efficient and energy-saving motor setup. The drive motor has a power rating of 0.75KW; while this may be slightly conservative compared to some high-end models, it effectively meets the demands of daily operations. This configuration not only ensures adequate power output but also controls energy consumption, reducing operating costs. Additionally, its battery capacity is 100Ah, regulated by a 24V voltage system, ensuring the equipment's stability and durability during continuous operation.
