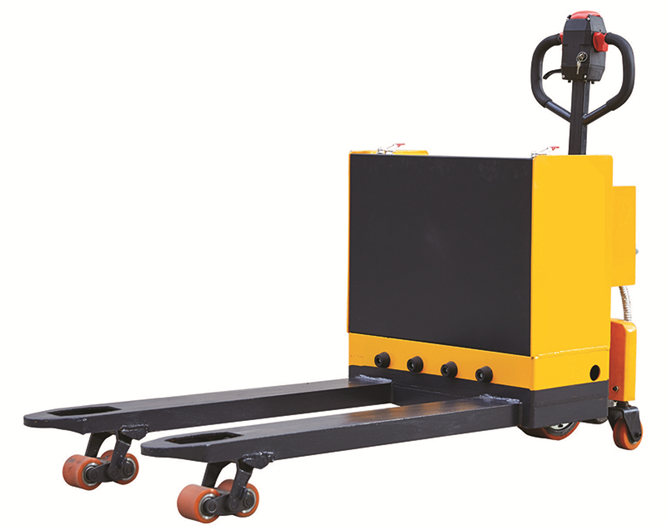

Lift Pallet Truck

Short Description:

Lift pallet truck is widely used for cargo handling in various industries, including warehousing, logistics, and manufacturing. These trucks feature manual lifting and electric travel functions. Despite the electric power assist, their design prioritizes user-friendliness, with a well-organized layo


Technical Data

Product Tags

Lift pallet truck is widely used for cargo handling in various industries, including warehousing, logistics, and manufacturing. These trucks feature manual lifting and electric travel functions. Despite the electric power assist, their design prioritizes user-friendliness, with a well-organized layout of operating buttons and handles, allowing operators to quickly become proficient. Compared to full-electric forklifts or heavy machinery, semi-electric pallet trucks are more compact and have a smaller turning radius, enabling them to navigate narrow passages and confined spaces with ease, which enhances warehouse utilization and work efficiency. The electric travel function significantly reduces fatigue from long periods of walking, while the manual or assisted lifting mechanism allows for precise control of the lifting height. Semi-electric pallet trucks also offer a lower initial investment and relatively low maintenance costs compared to full-electric forklifts. Additionally, their low energy consumption and convenient charging contribute to reduced operating costs.

Technical Data

Model



CBD

Config-code



BF10

BF15

BF20

BF25

BF30

Drive Unit



Semi-electric

Operation type



Pedestrian

Capacity (Q)

Kg

1000

1500

2000

2500

3000

Overall Length (L)

mm

1730

1730

1730

1860

1860

Overall Width (b)

mm

600

600

720

720

720

Overall Height (H2)

mm

1240

Mi. Fork height (h1)

mm

85(140)

Max. Fork height (h2)

mm

205(260)

Fork dimension (L1*b2*m)

mm

1200*160*45

MAX Fork Width (b1)

mm

530/680

Turning radius (Wa)

mm

1560

1560

1560

1690

1690

Drive Motor Power

KW

0.55

0.75

0.75

0.75

0.75

Battery

Ah/V

60Ah/24V

120/24

150-210/24

Weight w/o battery

kg

223

273

285

300

300


Specifications of Lift Pallet Truck:

This semi-electric pallet truck offers more load capacity options than the standard model, including 1000kg, 1500kg, 2000kg, 2500kg, and 3000kg, catering to a wide range of needs. Depending on the load capacity, the corresponding pallet trucks vary in size. The overall length comes in two options: 1730mm and 1860mm. The overall width is available in either 600mm or 720mm. The fork height can be adjusted according to ground conditions, with a minimum height of 85mm or 140mm and a maximum height of 205mm or 260mm. The fork dimensions are 1200mm x 160mm x 45mm, with an outer width of 530mm or 660mm. Additionally, the turning radius is smaller than that of the standard model, measuring just 1560mm.

Quality & Service:

The major structure is made of high-strength steel, with all raw materials undergoing strict quality inspections. It is corrosion-resistant and designed for a long service life, capable of operating reliably even in harsh environments. We offer a warranty on spare parts, and during this period, if any damage occurs that is not due to human factors, force majeure, or improper maintenance, we will provide replacement parts free of charge. Before shipping, our professional quality inspection department thoroughly checks the product to ensure it meets all quality standards.

About Production:

We meticulously control every step of the production process. High-quality steel, rubber, hydraulic components, motors, controllers, and other key materials are carefully selected to meet industry standards and design specifications. Professional welding equipment and procedures are used, with strict control over welding parameters to ensure the quality of the welds. Before the pallet truck leaves the factory, it undergoes a comprehensive quality inspection, including appearance checks, performance testing, and safety evaluations, to ensure the product meets all standard requirements.

Certification:

Our semi-electric pallet trucks hold international certifications, comply with global safety standards, and are approved for export worldwide. The certifications we have obtained include CE, ISO 9001, ANSI/CSA, TÜV, and more.
