Four Post Parking Lift Suitable Price

Short Description:

4 Post Lift Parking is one of the most popular car lift among our customers. It belongs to valet parking equipment, which is equipped with electrical control system. It is driven by hydraulic pump station. Such kind of parking lift is suitable for both light car and heavy car.


  • Platform size range: 4600mm*2352mm
  • Capacity range: 2300kg-3200kg
  • Max Platform height range: 2100mm(adjustable)
  • Free ocean shipping insurance available
  • Free LCL ocean shipping available at some ports
  • Technical Data

    Optional Configuration

    Details Display

    Real Photo Display

    Product Tags

    Four post parking lift is currently a very popular new parking method. It provides a simple and cost-effective way to create two independent parking spaces, suitable for permanent parking, valet parking or car storage. In order to meet different parking needs, we have designed different park lifting equipment.

    At present, many communities and public places are slowly introducing four-post parking elevators, which greatly alleviates the problem of insufficient parking spaces in communities and public places. If you have a small space, we recommend a two-post parking lift, which occupies a smaller area and is suitable for home use.

    Send inquiry to us for more detailed parameters.

    FAQ

    Q: What is the height range and load-bearing capacity of the four-post parking lift machine?

    A: The height range is 1.8m-2.1m and the capacity is 3600kg.

    Q: Will the platform automatically stop when it reaches a specified height?

    A: The limiter is installed on our column, when the equipment rises to the designated position, it will automatically stop rising.

    Q: How is your shipping capacity?

    A: We have cooperated with many professional shipping companies for many years, and they will provide us with very good services in terms of ocean transportation.

    Q: How do we send an inquiry to your company?

    A: Both the product page and the homepage have our contact information. You can click the button to send an inquiry or contact us directly: sales@daxmachinery.com Whatsapp:+86 15192782747

    Video

    Specifications

    Model No.

    FPL3618

    FPL3620

    FPL3621

    Car Parking Height

    1800mm

    2000mm

    2100mm

    Loading Capacity

    3600kg

    3600kg

    3600kg

    Drive Through

    1896mm (it’s enough for parking family cars and SUV)

    Usages

    Suitable for parking and repairing cars and double space for storage

    Motor Capacity/Power

    3KW,Voltage is customized as per customer local standard

    Cylinder

    Italy Aston seal ring, double high pressure resin tubing, 100% no oil leakage

    Rated Oil Pressure

    18mpa

    18mpa

    18mpa

    Test

    125% dynamic load test and 175% static load test

    Control Mode

    Mechanical unlock by keep pushing the handle during the descent period

    Other Control Mode

    Electromagnetic unlock is optional (price as follows)

    Standard configurations

    3pcs plastic tray to prevent the oil drip from upper car while parking

    1pc metal tray to load a jack for car maintenance use

    Middle Panel and Side Baffle

    Not included. It’s optional (price as follows)

    Car Parking Quantity

    2pcs*n

    2pcs*n

    2pcs*n

    Loading Qty 20’/40’

    12pcs/24pcs

    12pcs/24pcs

    12pcs/24pcs

    Weight

    750kg

    850kg

    950kg

    Product Size

    4920*2664*2128mm

    5320*2664*2328mm

    5570*2664*2428mm

    Packing Size(1 SET)

    4370*550*705mm

    4700*550*710mm

    4900*550*710mm

    Packing Size(3 SETS)

    4370*550*2100mm

    4700*550*2150mm

    4900*550*2150mm

    Why Choose Us

    As a professional four post parking lift supplier, we have provided professional and safe lifting equipment to many countries around the world, including the United Kingdom, Germany, the Netherlands, Serbia, Australia, Saudi Arabia, Sri Lanka, India, New Zealand, Malaysia, Canada and others nation. Our equipment takes into account the affordable price and excellent work performance. In addition, we can also provide perfect after-sales service. There is no doubt that we will be your best choice!

    Dual-cylinder lifting system:

    The design of the double-cylinder lifting system ensures the stable lifting of the equipment platform.

    Back shield:

    The design of the tailgate can ensure that the car is safely parked on the platform.

    High-quality hydraulic pump station:

    Ensure the stable lifting of the platform and a long service life.

    73

    Anti-falling mechanical locks:

    The design of the anti-falling mechanical lock ensures the stability of the platform.

    Emergency button:

    In case of emergency during work, the equipment can be stopped.

    Balance safety chain:

    The equipment is installed with a high-quality balanced safety chain to ensure the stable lifting of the platform.

    Advantages

    Simple structure:

    The structure of the equipment is simpler and the installation is easier.

    Multi mechanical lock:

    The equipment is designed with multiple mechanical locks, which can fully guarantee the safety when parking.

    Bolt fixing:

    Four post parking lift equipped with special bolt installation to ensure the stability of the equipment.

    Limited switch:

    The design of the limit switch prevents the platform from exceeding the original height during the lifting process, ensuring safety.

    Waterproof protection measures:

    Our products have made waterproof protection measures for hydraulic pump stations and oil tanks, and they have been used for a long time.

    Electromagnetic lock (Optional):

    The equipment is equipped with four electromagnetic locks to ensure the safety and stability of the platform.

    Application

    Case 1

    Our customers in Singapore purchase our four-post parking lifts mainly for parking in residential areas. In order to increase the parking space in the community, four-post parking lifts were purchased uniformly. Our elevator can be equipped with a remote control to control the lifting, so it is more convenient.

     74-74

    Case 2

    One of our customers in Portugal bought a four-post parking lift mainly for parking in his auto repair shop. Because of the limited space of his auto repair shop, he bought our four-post parking lift in order to store more vehicles. After the installation, our quality was recognized by him, so he decided to buy back 3 sets of equipment for the auto repair shop.

    75-75

    5
    4

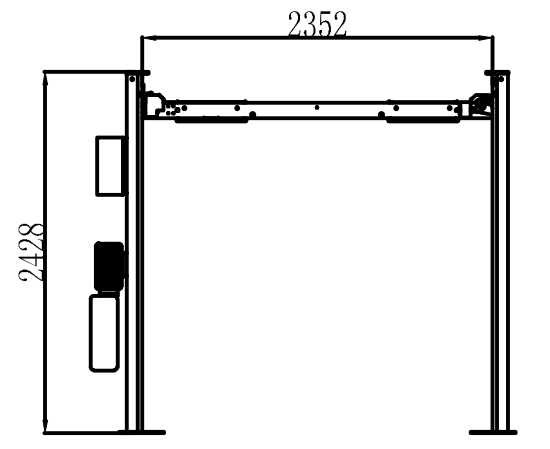

    Technical Drawing

    (Model: DXFPP3618)

    Technical Drawing

    (Model: FPP3620)

    Technical Drawing

    (Model: FPP3621)


  • Previous:
  • Next:

  • Item

    Name


    1

    DXFPP3618

    Side Baffle & Middle Plate

    2

    DXFPP3620/DXFPP3621Side Baffle & Middle Plat

    3

    Electromagnetic unlocking

    4

    Remote Control

    5

    Metal Rain Cover

    (for pump station-outdoor use)

    6

    Wheels

    For easy moving

    7

    Jack for

    Secondary Lifting



    Mechanical/Manual Unlock -Standard Configurations

    Metal Rain Cover -Optional for Outdoor Use

    Electrical Control Box with Key -Optional for Electromagnetic Unlock

    Electromagnetic Unlock -Optional

    Simple Design and Durable Structure

    Front Ramp

    Anti-Skidding Checkered Steel Plate,Spray Paint

    Back Shield

    High Quality Cylinder with Solid Steel Ropes-Flange Connected

    High Quality Pump Station

    Installing-Anchoring

    Safety Precautions -limited switch,anti-falling mechanical locks,bending steel plate column
