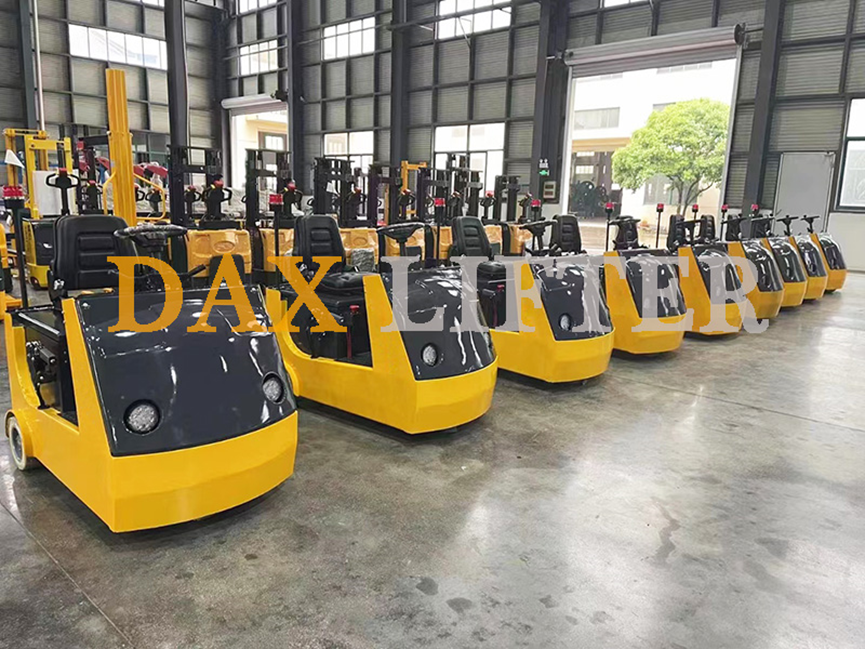

Electric Tow Tractor is powered by an electric motor and is primarily used for transporting large quantities of goods inside and outside the workshop, handling materials on the assembly line, and moving materials between large factories. Its rated traction load ranges from 1000kg to several tons, with two available options of 3000kg and 4000kg. The tractor features a three-wheel design with front-wheel drive and light steering for enhanced maneuverability.

Technical Data

Specifications of Electric Tow Tractor:

Electric Tow Tractor equipped with a high-performance drive motor and an advanced transmission system, ensuring stable and robust power output even when fully loaded or facing challenges such as steep slopes. The drive motor's excellent performance provides sufficient traction to handle various operational needs with ease.

The ride-on design allows the operator to maintain a comfortable posture during long working hours, effectively reducing fatigue. This design not only enhances work efficiency but also protects the operator's physical and mental well-being.

With a traction capacity of up to 4000kg, the tractor can easily tow most conventional goods and meet diverse handling requirements. Whether in warehouses, factories, or other logistics settings, it demonstrates outstanding handling capabilities.

Equipped with an electric steering system, the vehicle offers increased flexibility and precision during turns. This feature improves operational convenience and ensures safe driving in narrow spaces or complex terrains.

Despite its substantial traction capacity, the ride-on electric tractor maintains a relatively compact overall size. With dimensions of 1640mm in length, 860mm in width, and 1350mm in height, a wheelbase of just 1040mm, and a turning radius of 1245mm, the vehicle exhibits excellent maneuverability in space-constrained environments and can easily adapt to various complex working conditions.

In terms of power, the traction motor delivers a maximum output of 2.8KW, providing ample support for the vehicle's operations. Additionally, the battery capacity reaches 385Ah, precisely controlled by a 24V system, ensuring long-term continuous operation on a single charge. The inclusion of a smart charger enhances the convenience and efficiency of charging, with the high-quality charger supplied by the German company REMA.

The total weight of the tractor is 1006kg, with the battery alone weighing 345kg. This careful weight management not only improves the vehicle's stability and handling but also ensures efficient operation under various working conditions. The battery's moderate weight ratio guarantees sufficient cruising range while avoiding unnecessary burdens from excessive battery weight.
