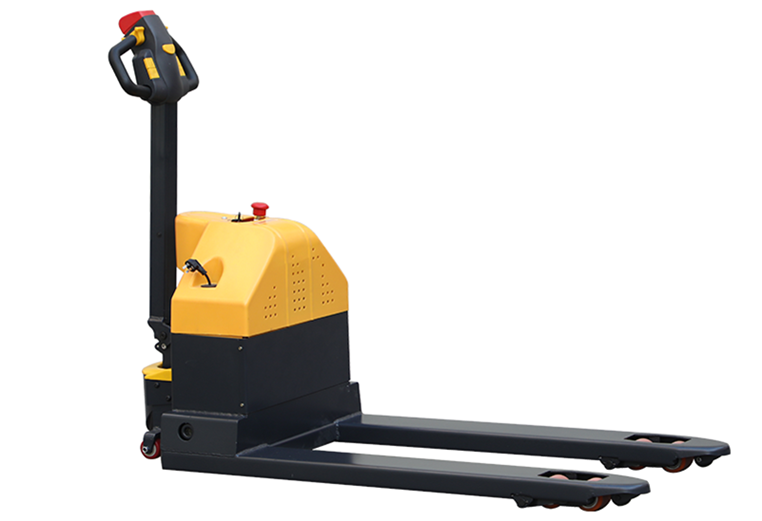

Electric Powered Pallet Truck

Short Description:

Electric powered pallet truck are a crucial part of modern logistics equipment. These trucks are equipped with a 20-30Ah lithium battery, providing long-lasting power for extended, high-intensity operations. The electric drive responds quickly and delivers smooth power output, enhancing the stabilit


Technical Data

Product Tags

Electric powered pallet truck are a crucial part of modern logistics equipment. These trucks are equipped with a 20-30Ah lithium battery, providing long-lasting power for extended, high-intensity operations. The electric drive responds quickly and delivers smooth power output, enhancing the stability and safety of handling tasks while making movement more convenient and labor-saving. The fork height can be adjusted to suit different ground conditions, and the push-type driving method allows for flexible operation in tight spaces. Key components, such as motors and batteries, have undergone rigorous testing, ensuring stable performance even under harsh working conditions. We sincerely invite you to experience our products and discover efficient, environmentally friendly, and safe handling solutions.

Technical Data

Model

CBD

Config-code

E15

Drive Unit

Semi-electric

Operation type

Pedestrian

Capacity (Q)

1500 kg

Overall Length (L)

1589mm

Overall Width (b)

560/685mm

Overall Height (H2)

1240mm

Mi. Fork height (h1)

85mm

Max. Fork height (h2)

205mm

Fork dimension (L1*b2*m)

1150*160*60mm

MAX Fork Width (b1)

560*685mm

Turning radius (Wa)

1385mm

Drive Motor Power

0.75KW

Lift motor power

0.8KW

Battery (Lithium))

20Ah/24V

30Ah/24V

Weight w/o battery

160kg

Battery weight

5kg

Specifications of Electric Powered Pallet Truck:

Compared to the CBD-G series, this model features several specification changes. The load capacity is 1500kg, and while the overall size is slightly smaller at 1589*560*1240mm, the difference is not significant. The fork height remains similar, with a minimum of 85mm and a maximum of 205mm. Additionally, there are some design changes in the appearance, which you can compare in the provided images. The most significant improvement in the CBD-E compared to the CBD-G is the adjustment of the turning radius. This all-electric pallet truck has a turning radius of just 1385mm, the smallest in the series, reducing the radius by 305mm compared to the model with the largest turning radius. There are also two battery capacity options: 20Ah and 30Ah.

Quality & Service:

The main structure is made from high-strength steel, offering excellent load-bearing capacity and enhanced corrosion resistance, making it adaptable to various working environments and suitable for different types of tasks. With proper maintenance, its service life can be significantly extended. We offer a 13-month warranty on parts. During this period, if any parts are damaged due to non-human factors, force majeure, or improper maintenance, we will provide free replacement parts, ensuring your purchase with confidence.

About Production:

The quality of raw materials directly determines the quality of the final product. Therefore, we maintain high standards and strict requirements when procuring raw materials, rigorously screening each supplier. Key materials such as hydraulic components, motors, and controllers are sourced from the top industry leaders. The durability of the steel, the shock absorption and anti-skid properties of the rubber, the precision and stability of the hydraulic components, the powerful performance of the motors, and the intelligent accuracy of the controllers together form the foundation of our transporters' exceptional performance. We utilize advanced welding equipment and processes to ensure precise and flawless welding. Throughout the welding process, we strictly control parameters such as current, voltage, and welding speed to ensure that the weld quality meets the highest standards.

Certification:

Our electric powered pallet truck have garnered widespread recognition and praise in the global market for their exceptional performance and quality. The certifications we have obtained include CE certification, ISO 9001 certification, ANSI/CSA certification, TÜV certification, and more. These various international certifications enhance our confidence that our products can be sold safely and legally worldwide.
