Electric Pallet Stacker

Short Description:

Electric Pallet Stacker blends the flexibility of manual operation with the convenience of electric technology. This stacker truck stands out for its compact structure. Through meticulous industrial design and advanced pressing technology, it maintains a lightweight body while withstanding greater l


Technical Data

Product Tags

Electric Pallet Stacker blends the flexibility of manual operation with the convenience of electric technology. This stacker truck stands out for its compact structure. Through meticulous industrial design and advanced pressing technology, it maintains a lightweight body while withstanding greater load pressure, showcasing exceptional durability.

Technical Data

Model



CDSD

Config-code

Standard Type



A10/A15

Straddle Type



AK10/AK15

Drive Unit



Semi-electric

Operation type



Pedestrian

Capacity (Q)

kg

1000/1500

Load center(C)

mm

600(A) /500 (AK)

Overall Length (L)

mm

1820(A10)/1837(A15)/1674(AK10)/1691(AK15)

Overall Width (b)

A10/A15

mm

800

800

800

1000

1000

1000

AK10/AK15

1052

1052

1052

1052

1052

1052

Overall Height (H2)

mm

2090

1825

2025

2125

2225

2325

Lift height(H)

mm

1600

2500

2900

3100

3300

3500

Max working height(H1)

mm

2090

3030

3430

3630

3830

4030

Lowered fork height(h)

mm

90

Fork dimension(L1xb2xm)

mm

1150x160x56(A)/1000x100x32 (AK10)/1000 x 100 x 35 (Ak15)

Maximum fork width(b1)

mm

540 or 680(A)/230~790(AK)

Turning radius (Wa)

mm

1500

Lift motor power

KW

1.5

Battery

Ah/V

120/12

Weight w/o battery

A10

kg

380

447

485

494

503

A15

440

507

545

554

563

AK10

452

522

552

562

572

AK15

512

582

612

622

632

Battery weight

kg

35

Specifications of Electric Pallet Stacker:

This Electric Pallet Stacker excels in the logistics and warehousing sector with its sophisticated structural design and exceptional performance. Its lightweight yet stable design, featuring a C-shaped steel door frame crafted through a specialized pressing process, ensures not only high durability but also stability and safety during prolonged use, significantly extending the equipment’s lifespan.

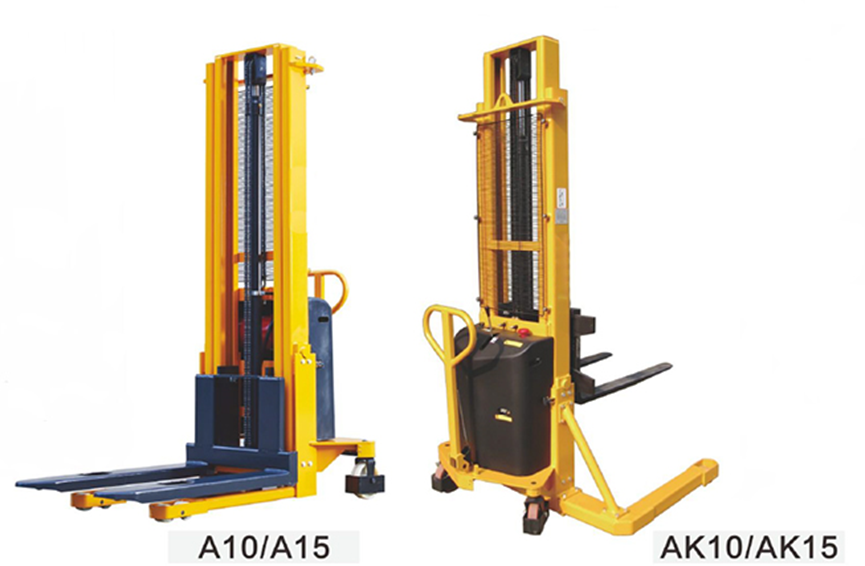

To accommodate various warehouse environments, the Electric Pallet Stacker offers two model options: the A Series standard type and the AK Series wide-leg type. The A Series, with a moderate total width of approximately 800mm, is a versatile choice ideal for most standard warehouse settings. In contrast, the AK Series wide-leg type, with an impressive total width of 1502mm, is tailored for scenarios requiring the transport of larger volumes, greatly expanding the stacker’s range of applications.

In terms of lifting performance, this Electric Pallet Stacker excels with a flexible height adjustment range from 1600mm to 3500mm, covering nearly all common warehouse shelf heights. This allows operators to easily handle various height-related cargo needs. Additionally, the turning radius has been optimized to 1500mm, ensuring the Electric Pallet Stacker can navigate narrow passages with ease, thereby enhancing work efficiency.

Power-wise, the Electric Pallet Stacker is equipped with a robust 1.5KW lifting motor, providing ample power for quick and smooth lifting operations. Its large 120Ah battery, paired with stable 12V voltage control, ensures excellent endurance even during extended continuous use, minimizing downtime due to frequent charging.

The fork design also demonstrates high flexibility and adaptability in both the A Series and AK Series. The A Series features adjustable fork widths ranging from 540mm to 680mm, making it suitable for various standard pallet sizes. The AK Series offers a wider fork range of 230mm to 790mm, accommodating nearly all types of cargo handling needs, providing users with a broader range of options.

Finally, the stacker’s maximum load capacity of 1500kg enables it to easily manage heavy pallets and bulk goods, making it a reliable solution for demanding logistics and warehousing tasks.
