Electric Forklift

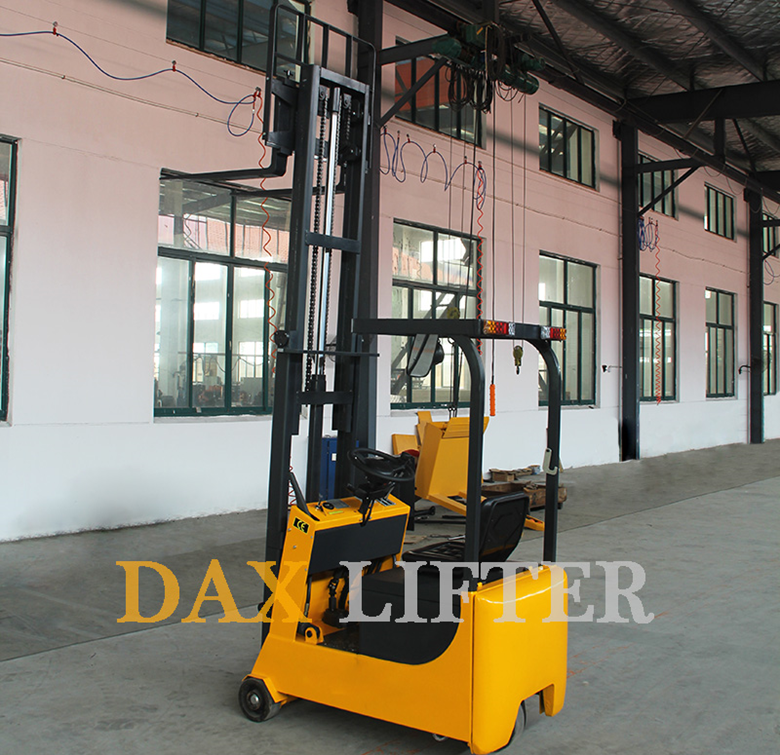

Electric forklift is increasingly utilized in logistics, warehousing, and production. If you’re in the market for a lightweight electric forklift, take a moment to explore our CPD-SZ05. With a load capacity of 500kg, a compact overall width, and a turning radius of just 1250mm, it easily navigates through narrow passages, warehouse corners, and production areas. The seated design of this light type electric forklift provides a comfortable driving environment for operators, reducing fatigue from prolonged standing and enhancing operational stability and safety. Additionally, it features an intuitive control panel and operating system, allowing operators to quickly get started and become proficient in its use.
Technical Data
|
Model |
|
CPD |
|
|
Config-code |
|
SZ05 |
|
|
Drive Unit |
|
Electric |
|
|
Operation Type |
|
Seated |
|
|
Load capacity(Q) |
Kg |
500 |
|
|
Load center(C) |
mm |
350 |
|
|
Overall Length (L) |
mm |
2080 |
|
|
Overall Width (b) |
mm |
795 |
|
|
Overall Height (H2) |
Closed mast |
mm |
1775 |
|
Overhead guard |
1800 |
||
|
Lift height (H) |
mm |
2500 |
|
|
Max working height(H1) |
mm |
3290 |
|
|
Fork dimension (L1*b2*m) |
mm |
680x80x30 |
|
|
MAX Fork Width (b1) |
mm |
160~700(Adjustable) |
|
|
Minimum ground clearance（m1） |
mm |
100 |
|
|
Min.right angle aisle width |
mm |
1660 |
|
|
Mast obliquity(a/β) |
° |
1/9 |
|
|
Turning radius (Wa) |
mm |
1250 |
|
|
Drive Motor Power |
KW |
0.75 |
|
|
Lift Motor Power |
KW |
2.0 |
|
|
Battery |
Ah/V |
160/24 |
|
|
Weight w/o battery |
Kg |
800 |
|
|
Battery weight |
kg |
168 |
|
Specifications of Electric ForkLift:
This electric forklift is lightweight and convenient, with overall dimensions of 2080*795*1800mm, allowing for flexible movement even in indoor warehouses. It features an electric drive mode and a battery capacity of 160Ah. With a load capacity of 500kg, a lifting height of 2500mm, and a maximum working height of 3290mm, it boasts a turning radius of just 1250mm, earning it the designation of a light electric forklift. Depending on specific working conditions, the outer width of the fork can be adjusted from 160mm to 700mm, with each fork measuring 680*80*30mm.
Quality & Service:
We use high-quality steel for the main structure of the electric forklift, as this is critical for its load-bearing capacity and stability, contributing to the forklift's long service life. Additionally, the quality of the components is essential for ensuring the equipment's longevity. All parts undergo rigorous screening and testing to guarantee stable performance under various harsh conditions, thereby reducing the failure rate. We offer a 13-month warranty on parts. During this period, if any parts are damaged due to non-human factors, force majeure, or improper maintenance, we will provide replacements free of charge.
About Production:
During the procurement process, we conduct stringent quality inspections on each batch of raw materials, ensuring that their physical properties, chemical stability, and environmental standards meet our production requirements. From cutting and welding to grinding and spraying, we adhere strictly to established production processes and standard operating procedures. Once production is complete, our quality inspection department performs comprehensive and professional testing and evaluation of the forklift's load capacity, driving stability, braking performance, battery life, and other critical aspects.
Certification:
Our light type and compact electric forklifts have received high recognition in the international market due to their excellent performance and adherence to strict international certification standards. The following certifications have been obtained for our products: CE certification, ISO 9001 certification, ANSI/CSA certification, TÜV certification, and more. These certifications cover the requirements for imports in most countries, allowing for free circulation in global markets.
