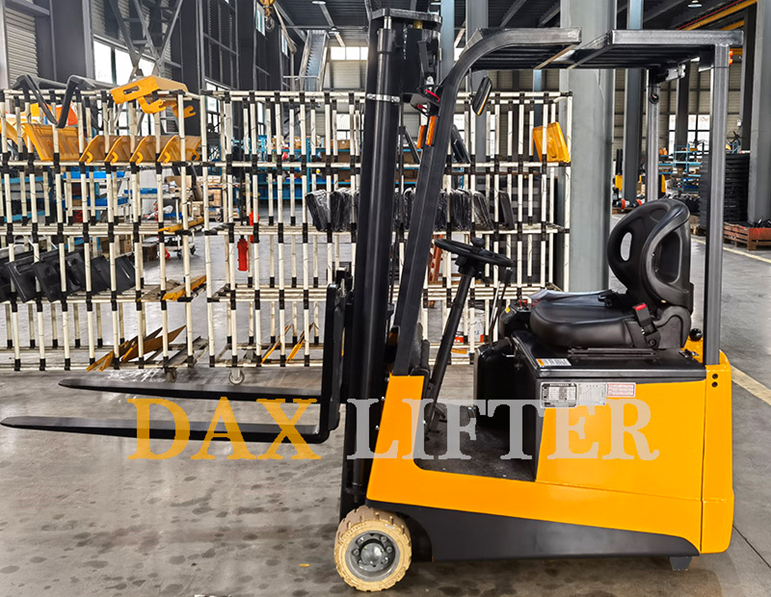

Compact electric forklift is a storage and handling tool specifically designed for workers in small spaces. If you're concerned about finding a forklift capable of operating in narrow warehouses, consider the benefits of this mini electric forklift. Its compact design, with an overall length of just 2238mm and a width of 820mm, makes it an ideal choice for tight spaces. The dual mast with free lift functionality allows it to be used in containers. Despite its small size, the mini electric forklift offers sufficient load capacity to handle various goods in confined areas. A large-capacity battery ensures extended operational endurance, and the optional EPS electric steering system further simplifies operation.

Technical Data

Specifications of Compact Electric Forklift:

This three-wheel electric forklift has a rated load capacity of 1,000kg, making it suitable for handling various goods in the warehouse. With overall dimensions of 2238*820*1895mm, its compact size significantly improves warehouse space utilization, allowing for a more efficient and streamlined layout. The turning radius is just 1225mm, making it highly maneuverable in tight spaces. Despite its small size, the forklift features a secondary mast with a lifting height of up to 3100mm, ensuring smooth and stable movement. The battery capacity is 385Ah, and the AC drive motor provides robust power, enabling the forklift to climb smoothly even when fully loaded. The joystick controls the fork's lifting and lowering, as well as the mast's forward and backward tilt, making operation easier and faster, and allowing for precise handling and stacking of goods. The forklift is equipped with rear lights in three colors to indicate movement, reversing, and turning, enhancing operational safety. A tow bar at the rear allows the forklift to tow other equipment or cargo when needed, increasing its versatility.

Quality & Service:

Both the controller and the power meter are manufactured by CURTIS in the United States. The CURTIS controller precisely manages motor operations, ensuring the forklift's stability and efficiency during use, while the CURTIS power meter accurately displays battery levels, enabling the driver to monitor the forklift's status and avoid unexpected downtime due to low power. The charging plug-ins are provided by REMA from Germany, ensuring current stability and safety during charging, effectively extending the lifespan of the battery and charging equipment. The forklift is equipped with tires that offer excellent grip and wear resistance, maintaining stable movement on various surfaces. We offer a warranty period of up to 13 months, during which we will supply free replacement parts for any failures or damage not caused by human error or force majeure, ensuring customer support.

Certification:

Our compact electric forklifts have earned wide recognition and praise in the global market for their exceptional performance and quality. We have obtained several certifications, including CE, ISO 9001, ANSI/CSA, and TÜV certifications. These authoritative international certifications provide us with the confidence that our products can be sold safely and legally worldwide.
