Mini Self-propelled Scissor Lift With Good Price

Short Description:

Self-propelled Mini Scissor Lift is developed from mobile mini scissor lift. Operators can control moving, turning, lifting and lowering standing on the platform. It’s very compact and portable. It have a small size and suitable for passing through narrow doorways and aisles.


  • Platform size: 1150*600mm
  • Platform extension: 550mm
  • Capacity range: 100kg
  • Max Platform height range: 3m~4m
  • Free ocean shipping insurance available
  • Free LCL shipping available at some ports
  • Technical Data

    Product Tags

    Mini self-propelled scissor lift has the function of automatic walking machine, integrated design, built-in battery power supply, can work under different conditions, no external power supply is required, and the moving process is easier. And the aerial platform is designed with extended platform, which broadens the working range of workers.

    Similar to the mini self-propelled lift machinery, we also have a mobile mini scissor lift. Its moving process is not as convenient as self-propelled lifting equipment, but the price is cheaper. If you have a lower budget, you can consider our mobile mini scissor lift.

    According to different work purposes, we have several other aerial models of scissor lifts, which can support the work needs of different industries. If you have the high-altitude scissor lift platform you need, please send us an inquiry to learn more about its performance!

    FAQ

    Q: What is the maximum height of the manual mini scissor lift?

    A: Its maximum height can reach 4 meters.

    Q: What is the quality of your self-propelled mini scissor lift?

    A: Our mini scissor lifts have passed the global quality system certification, are very durable and have high stability.

    Q: Do your prices have a competitive advantage?

    A: Our factory has introduced many production lines with high production efficiency, product quality standards, and reduced production costs to a certain extent, so the price is very favorable.

    Q: What if I want to know the specific price?

    A: You can directly click "Send email to us" on the product page to send us an email, or click "Contact Us" for more contact information. We will see and reply to all the inquiries received by the contact information

    w6

    Video

    Specifications

    Model

    SPM 3.0

    SPM 4.0

    Loading Capacity

    240kg

    240kg

    Max. Platform Height

    3m

    4m

    Occupants

    1

    1

    Platform Dimension

    1.15×0.6m

    1.15×0.6m

    Overall Length

    1.32m

    1.32m

    Overall Width

    0.76m

    0.76m

    Overall Height

    1.83m

    1.92m

    Platform Extension

    0.55m

    0.55m

    Extension Load

    100kg

    100kg

    Up/Down Speed

    34/20sec

    34/25sec

    Turning Radius

    0

    0

    Maximum Slope

    1.5°/2°

    1.5°/2°

    Drive Tyres

    Φ0.23×0.08m

    Φ0.23×0.08m

    Gradeability

    25%

    25%

    Wheel Base

    1.0m

    1.0m

    Travel Speed(Stowed)

    4km/h

    4km/h

    Travel Speed(Raised)

    0.5km/h

    0.5km/h

    Battery

    2×12v/80Ah

    2×12v/80Ah

    Lifting Motor

    24v/1.3kw

    24v/1.3kw

    Drive Motors

    2×24v/0.4kw

    2×24v/0.4kw

    Charger

    24v/12A

    24v/12A

    Weight

    630kg

    660kg

    Why Choose Us

    Our smart mini scissor lift has best quality and nice working performance,whatever the price and smart design is the star in Industry work.Light weight and flexible design which make one man can operate the scissor lift very easy.Our mini scissor lift is a good choice for aerial work in warehouse,church, school and many place .Besdies,there is many advantages below

    Two control panels:
    One is equipped on the platform and one is installed on the bottom.

    Emergency lowering valve:
    In the event of an emergency or power failure, this valve can lower the platform.
    Emergency stop button:
    In the event of an emergency, this button can make the equipment stop working.
    w7

    High-quality hydraulic structure:
    The hydraulic system is designed reasonably, the oil cylinder will not produce impurities, and the maintenance is easier.

    Anti-skid Platform:
    Prevent workers from slipping on platform

    Battery group:
    High-quality battery group, easy to charge and use.

    Advantages

    Small size:
    Self-propelled mini scissor lifts are small in size and can travel freely in narrow spaces, expanding the operating environment.
    Durable battery:
    Longer service life.
    Anti-slip platform:
    Ensure a safe working environment for workers.
    Extend Platform:
    It can broaden the working range of workers.
    Forklift Holes:
    It can be moved more conveniently.
    Ladder:
    Scissor lift is equipped with a ladder, it’s convenient to climb onto the platform.

    Application

    Case 1

    One of our customers in Korea bought a self-propelled mini scissor lift for billboard installation. Our lifting equipment size is small, so it can easily pass through narrow doors and elevators. The operation panel of the lifting equipment is installed on the high-altitude platform, and operators can complete the movement of the scissor lift, which greatly improves the work efficiency. Customers recognize the quality of our mini self-propelled scissor lifts. In order to improve the efficiency of work, he decided to buy back 2 small self-scissor lifts for other business of the company.

    w8

    Case 2

    One of our customers in Peru bought our self-propelled mini scissor lift for interior decoration. He owns a decoration company and needs to work indoors frequently. Mini self-propelled scissor lifts are equipped with extended platforms, which can broaden the working range of workers at heights and greatly improve work efficiency. Scissor lifting machinery is equipped with high-quality batteries, no need to carry charging equipment when working, and it is easier to provide DC power.

    w9

    More Details Show

    Hydraulic Pump Station and Motor

    Battery Group

    Control Handle on the Platform

    Control Panel on the Bottom

    Anti-misoperation Switch

    Two Emergency Stop Buttons

    Emergency drop value

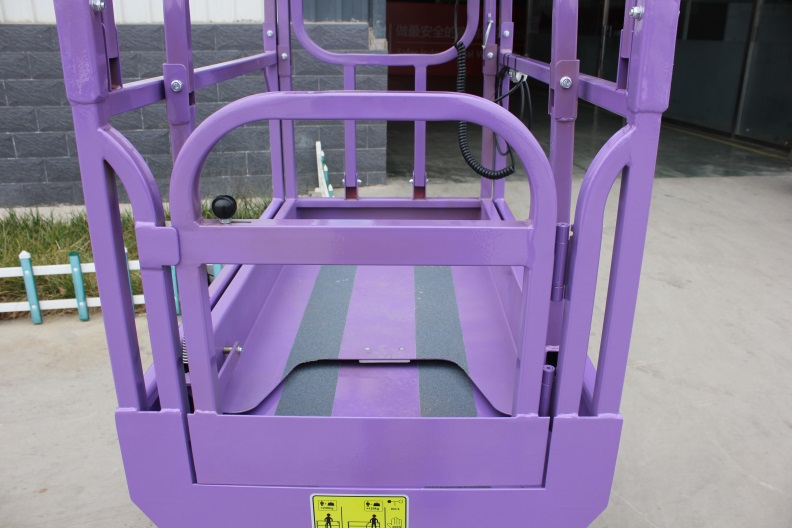

    Anti-slip Platform

    Extend Platform

    Collapsible guardrail

    Fence Lock

    Forklift Holes

    Ladder

    Safety Signs
