Self -propelled Order Picker Supplier Suitable Price For Sale

Short Description:

Self Propelled Order Picker is updated base on the semi electric order picker,it can be driven on platform which make the warehouse materials operations more efficient, there is no need to reduce the platform then move the working position


  • Platform size range: 640mm*600mm
  • Capacity range: 300kg
  • Max Platform height range: 2.7m-4.5m
  • Free ocean shipping insurance available
  • Free LCL shipping available at some ports
  • Technical Data

    Real Photo Display

    Product Tags

    Self-propelled order picker is full electric warehouse storage and retrieval equipment. Full electric pick-up machine helps warehouse personnel pick and place the goods on high-rise shelves by walking, lifting and other actions.

    Different from the order picker function, we also sell electric stackers, which can help warehouse managers to easily lift the goods to the corresponding shelves. The biggest advantage of the self-propelled order picker is its small size. The staff can operate the equipment on the platform to freely shuttle between the shelves, which greatly improves the work efficiency of the pickers.

    If your budget is not sufficient, we also have semi-electric order pickers, which are cheaper than fully electric order pickers. Come and send us an inquiry!

    FAQ

    Q: What is the size of the platform?

    A: The size of the platform is 600mm*640mm, and the platform for placing goods is designed separately.

    Q: What’s the height of the platform?

    A: The maximum platform height is 4.5m.

    Q: How about the warranty time?

    A: We shall to offer 12 months warranty time with free spare parts and although over the warranty time, we will offer charged parts and online technical support to you for a long time.

    Q: How do we send an inquiry to your company?

    A: Both the product page and the homepage have our contact information. You can click the button to send an inquiry or contact us directly: sales@daxmachinery.com Whatsapp:+86 15192782747





    Specifications

    Model Type



    FOP3-2.7

    FOP3-3.3

    FOP3-4.0

    FOP3-4.5

    Max.Platform Height

    mm

    2700

    3300

    4000

    4500

    Max.Machine Height

    mm

    4120

    5000

    5400

    6000

    Ground Clearance

    mm

    40

    Rated Capacity

    kg

    300

    Platform Size

    mm

    600*640

    Max.Drive Speed (platform Stowed)

    km/h

    4

    Max.Drive Speed (platform Elevated)

    km/h

    1.6

    Min.turning Radius

    mm

    1500

    Max.Climbing Capacity

    %

    15~20

    Driving Wheel Size

    mm

    230*80

    Caster Size

    mm

    6

    Driving Motor

    v/kw

    2*24/0.4

    Lifting Motor

    v/kw

    24/1.6

    Anerold battery

    v/Ah

    2*12/150

    Charger

    v/A

    24/15

    Overall Length

    mm

    1530

    1620

    Overall Width

    mm

    700

    720

    Overall Height

    mm

    1830

    2130

    1840

    2000

    Overall Net Weight

    kg

    430

    450

    660

    680

    Why Choose Us

    As a professional self propelled order picker supplier, we have provided professional and safe lifting equipment to many countries around the world, including the United Kingdom, Germany, the Netherlands, Serbia, Australia, Saudi Arabia, Sri Lanka, India, New Zealand, Malaysia, Canada and others nation. Our equipment takes into account the affordable price and excellent work performance. In addition, we can also provide perfect after-sales service. There is no doubt that we will be your best choice!

    Battery Indicator:

    Equipped with a power display, you can observe the power of the device in time to ensure the smooth progress of the work.

    Charger:

    The order picker equipped with charger convenient to replenish power in time.

    Tilt Sensor:

    The equipment is designed with a tilt sensor, which can fully ensure a safe working environment for the staff.

    38

    High-quality guardrail:

    The use of high-quality materials and guardrails designed in accordance with international safety standards ensure a safe working environment for operators.

    Emergency decline button:

    In case of emergency during work, the equipment can be stopped.

    High-quality hydraulic pump station:

    Our equipment adopts imported hydraulic pump station, which has a longer service life.

    Advantages

    Operator Platform and Cargo Platform:

    The platform of the order picker is divided into two parts, the operator and the cargo, which is more convenient for work.

    Full electric drive:

    Order picker is driven by electricity, which makes the working process more convenient to move.

    Pickup height can be adjusted:

    The equipment can move up and down freely, and the goods on the shelves of different heights can be taken by control.

    Small size:

    The size of the picker is small, and it can freely shuttle between the shelves.

    Control panel on the platform:

    The control handle is installed on the platform, which is convenient for the operator to control the movement and lift.

    Safety guardrail:

    A safety guardrail is installed on the platform to provide a safer environment for the operator.



    Application

    Case 1

    One of our Mexican customers bought our self-propelled order picker for pickup and replenishment of supermarket shelves. Order picker is small in size and can be moved in the narrow space between the shelves. The staff can operate the movement of the pickup machine on the platform, which is more convenient. Because the platform of the order picker has a platform for placing goods, it is more convenient in work. At the same time, the design of the guardrail fully guarantees the safety of the staff and the goods.

    39-39

    Case 2

    One of our customers in the UK bought our self-propelled order picker mainly for warehouse pickup. He has a chain of large supermarkets, which are now mainly sold through express delivery. Because his customers buy more and more complex products, he bought our order picker to help him with his work. With the help of the self-propelled movement of the order picker, he can reduce a lot of walking, and the platform of the equipment can place goods, and his staff can take goods from multiple shelves at one time, which greatly improves work efficiency.

    40-40

    5
    4

    Details

    Battery Indicator and Power Switch
    Emergency Decline Button and Charger Plug

    Emergency Decline Button and Charger

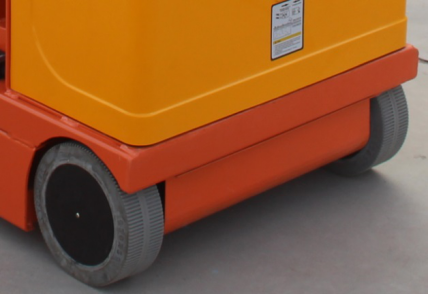

    Driven Wheels

    Driving Wheels

    Operator Platform and Cargo Platform

    Tilt Sensor


  • Previous:
  • Next:

  • ▲ The guardrail of the working platform and the protection of the platform entrance designed in accordance with international safety standards can effectively ensure the safety of high-altitude operations;

    ▲Imported high-power and high-quality hydraulic lifting pump station with first-class quality;

    ▲ Stop at any position of lifting height, convenient for operation

    ▲ The compact shape design enables the platform to pass through narrow passages or low door openings at the bottom;

    ▲ High-quality unattended smart charger;

    ▲ High-quality maintenance-free battery pack with large capacity;

    ▲The machine is restricted to work in the charging state;

    ▲ Equipped with emergency lowering valve device;

    ▲ Suitable for single operation;

    ▲ Equipped with fault self-diagnosis capability, convenient maintenance

    ▲ Flexible and convenient operation is the best choice for warehouse and supermarket stacking and reclaiming;

    ▲ Automatic display of fault code for easy maintenance;
