Four Rails Vertical Cargo Lift Supplier CE Certification

Short Description:

Four rails vertical cargo lift has many updated advantages compare to two rails freight elevator,big platform size,large capacity and higher platform height. But it need a bigger installation place and people need to prepare three phase AC power for it.


  • Platform size range: 1000mm*1000mm~2000mm*3000mm
  • Capacity range: 1000-5000kg
  • Max Platform height range: 4m-10m
  • Free ocean shipping insurance available
  • Free LCL shipping available at some ports
  • Technical Data

    Optional Configuration

    Real Photo Display

    Product Tags

    Four rails vertical cargo lift is a kind of non-scissor hydraulic lifting mechanical equipment, which is mainly used for hydraulic lifting mechanical equipment for lifting goods. It is especially suitable for basements, warehouse transformations and new construction shelves and so on. Vertical cargo lifting equipment has the advantages of sturdy structure, large carrying capacity, stable lifting, simple and convenient installation and maintenance, etc. It is an economical and practical low-floor elevator to replace the ideal cargo conveying equipment. The loading capacity is 1-5 tons, and the platform height is 4-10 meters. It can be installed indoors and outdoors.

    If you have a limited budget and do not need lifting equipment with a large load-bearing capacity, it is recommended to purchase our two rails vertical cargo elevator. If you don't have a place to install equipment but you also need a lift to help you work, it is recommended that you purchase our high-altitude scissor platform, which is easy to move and can also be used as a mobile lifting equipment.

    For more detailed data information, please send us an inquiry to get it!



    FAQ

    Q: What’s the height of the platform?

    A: The maximum platform height is 10m.

    Q: How about the production time?

    A: Usually we only need 20-30 days production time.

    Q: How about the warranty time?

    A: We shall to offer 12 months warranty time with free spare parts and although over the warranty time, we will offer charged parts and online technical support to you for a long time.

    Q: How do we send an inquiry to your company?

    A: Both the product page and the homepage have our contact information. You can click the button to send an inquiry or contact us directly: sales@daxmachinery.com Whatsapp:+86 15192782747

    Q: How about your price?

    A: After adopt modular design,which make us reduce a lot of production cost. So our price will be competitive.



    Video

    Specifications

    No.

    Structure

    Material name

    Specification

    Material

    Place of origin

    1.

    Body materials

    Lead rail

    12# Joist steel

    manganese steel

    Qingdao Iron & Steel Group Company

    2.

    Counter-tops truss

    12# channel steel

    Q235C

    Qingdao Iron & Steel Group Company

    3.

    Up platform

    checkered plate

    4mm

    Q345B

    Qingdao Iron and Steel Group

    4.

    Cylinder arm

    original tablet 10mm

    Q235

    Qingdao Iron and Steel Group

    5.

    Chain

    BL634

    Hangzhou

    6.

    connecting pin

    Round steel 60*48mm

    heat treatment

    45#

    Qingdao Iron and Steel Group

    Oil-lubricated bearings

    54*48mm

    Igus (Shanghai)

    7.

    Hydraulic system

    Precision Hydraulic Cylinders

    Φ80mm*2

    Hebei hengyu brand

    8.

    Supporting valve

    Anshan Lisheng

    9.

    High pressure piping

    Hebei hengyu

    10.

    Sealing elements

    Hebei hengyu

    11.

    Electric control

    AC contractor CJX1

    Chint Electric

    Limit switches

    Chint Electric

    Micro Switch

    Limit switch YBLX-K3-20X/T

    Chint Electric

    Electric motor 3KW

    12.

    Platform

    checkered plate 4mm

    120*60*4mm

    13.

    Voltage

    AC380V or customized

    14.

    Weight

    1.4T

    Why Choose Us

    Our vertical cargo lift has high safety and durable quality, providing longer service time and minimum downtime. As a professional manufacturer of scissors sets in northern China, we have provided thousands of scissors sets to the Philippines, Brazil, Peru, Chile, Argentina, Bangladesh, India, Yemen, Saudi Arabia, United Arab Emirates, Malaysia, Thailand and other countries. The safety precautions of the china freight elevator are as follows:

    Guardrail:

    The platform of the vertical cargo lift is equipped with guardrails to ensure the safety of people and goods.

    Lifting chains:

    Vertical cargo lift uses high-quality lifting chains, which are not easy to damage.

    Warranty:

    1 year(Free Parts Replacement).

    Online service 7*24 hours.

    All-life technical support.

    42

    High-quality hydraulic pump station:

    Our equipment adopts imported hydraulic pump station, which has a longer service life.

    Emergency button:

    In case of emergency during work, the equipment can be stopped.

    Manual:

    We provide detailed installation manuals to help customers install lifting machinery.

    Advantages

    Ramp:

    The vertical cargo lift is equipped with a ramp design to ensure that the cargo can be easily transported onto the table.

    Checkered Plate Platform:

    The design of the platform is non-slip, which can guarantee the safety and stability of people and goods.

    Large load-bearing capacity:

    The vertical cargo lifting equipment can load up to 1 ton of cargo.

    Customizable:

    According to the customer's site and work needs, within a reasonable range, we can provide customers with customized services

    Standardized design of accessories:

    The accessories of the lifting machinery are standardized, so the installation is more convenient.

    Fence:

    Our equipment can be equipped with fences to ensure safety when the equipment is working.

    Application

    Case 1

    One of our customers in the Philippines bought our four rails vertical cargo lift, which is mainly used to transport car parts from the underground garage to the first floor. His auto repair shop parks many cars that need to be repaired, and it is not convenient to move parts. So he bought our vertical cargo lifting equipment to directly transport the parts from the underground garage to the designated location on the first floor, saving a lot of effort and greatly improving His work efficiency.

    43-43

    Case 2

    One of our customers in Germany bought our four rails vertical cargo lift and installed it at the entrance of his factory. This installation makes it easier to transport cargo to the truck. Vertical cargo lifting equipment is designed with ramps, and the products produced in the factory can be easily moved to the platform with a forklift, reducing the work pressure of workers. At the same time, our freight cargo lifting equipment is equipped with safety fences, which can ensure the safety of the cargo when it is transported.

    44-44



    5
    4

    Details

    Checkered Plate Platform

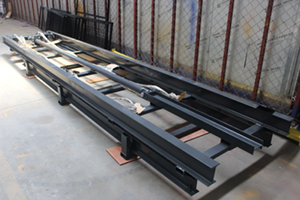

    Rails & Cylinder

    Lifting Chains + Safety Rope 1

    Lifting Chains + Safety Rope 2

    Lifting Chains + Safety Rope 3

    Control Panel

    Electric Part

    Pump Station


  • Previous:
  • Next:

  • Item

    Description

    Pictures

    1.

    Guardrail

    2.

    Door

    3.

    Ramp

    4.

    Fencing & Door

    5.

    Fencing Electromagnetic Lock
