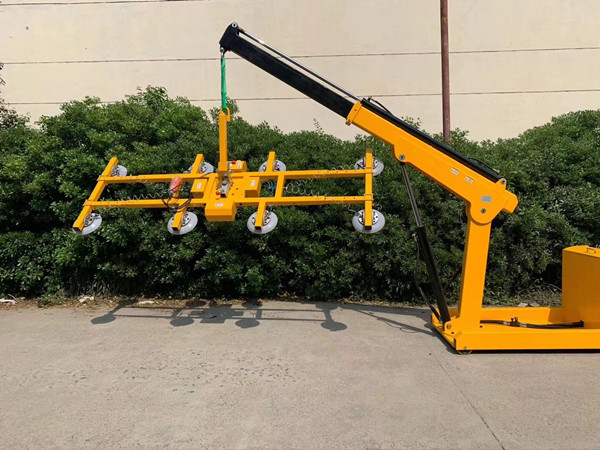

Custom Made Multiple Function Glass Lifter Vacuum Suction Cup
The electric glass suction cup is driven by a battery and does not require cable access, which solves the problem of inconvenient power supply on the construction site. It is especially suitable for high-altitude curtain wall glass installation and can be customized according to the size of the glass. It can realize the 0-90 degree turning and 360 degree rotating conveyance of the glass plate. Provide a variety of free combinations of structures and suction cups, equipped with a digital pressure gauge. Accumulators and pressure detection devices can ensure work safety.
FAQ
A: The suction cup is driven by a battery, which avoids cable entanglement and is more convenient to use.
A: No, our equipment is equipped with an accumulator to ensure that the vacuum system has a certain degree of vacuum. In the case of a sudden power failure, the glass can still maintain the adsorption state with the spreader and will not fall off, which can effectively protect the operator.
A: Yes, we have passed the European Union certification, and the quality is guaranteed.
A: Both the product page and the homepage have our contact information. You can click the button to send an inquiry or contact us directly: sales@daxmachinery.com Whatsapp:+86 1519278274
Video
Specifications
|
Model |
|
DXGL-XD-400 |
DXGL-XD-600 |
DXGL-XD-800 |
DXGL-XD-1000 |
|
Lifting Capacity |
kg |
400 |
600 |
800 |
1000 |
|
Cup Qty |
/ |
4 |
6 |
8 |
10 |
|
Single Cup Size |
mm |
300 |
300 |
300 |
300 |
|
Single Cup Lifting Capacity |
kg |
100 |
100 |
100 |
100 |
|
Rotation |
/ |
360°manual rotate |
|||
|
Tilting |
/ |
90° manual |
|||
|
Volte |
V |
DC12 |
|||
|
Charger |
V |
AC220/110 |
|||
|
Weight |
kg |
70 |
90 |
100 |
110 |
|
Sucker Frame Size |
mm |
850*750*300 |
1800*900*300 |
1760*1460*300 |
1900*1600*300 |
|
Extension Bar Length |
mm |
500 |
|||
|
Control System |
/ |
Integrated Control Cabinet and Wired Remote Control |
|||
|
Overall Size after packing by wooden box |
mm |
1230*910*390 |
|||
|
Gross Weight after packing by wooden box |
kg |
97 |
110 |
123 |
150 |
Why Choose Us
As a professional vacuum suction cup supplier, we have provided professional and safe lifting equipment to many countries around the world, including the United Kingdom, Germany, the Netherlands, Serbia, Australia, Saudi Arabia, Sri Lanka, India, New Zealand, Malaysia, Canada and others nation. Our equipment takes into account the affordable price and excellent work performance. In addition, we can also provide perfect after-sales service. There is no doubt that we will be your best choice!
Spring support:
The spring support of the suction cup meets the uniform force of the workpiece, and the spring buffer prevents the workpiece from being damaged.
Large rotation angle:
Standard configuration manual flip 0°-90°, manual rotation 0-360°.
Optional suction cup material:
According to the different objects that need to be sucked up, you can choose suckers of different materials.
Alarm system:
The sound and light alarm system is to ensure that the suction crane pressure gauge can work safely under the standard vacuum degree above 60%;
Extended arm:
When the glass size is larger, you can choose to install an extension arm.
Battery drive:
Install the battery to work, no need to plug in when working, more convenient and convenient.
Advantages
Check valve:
The one-way valve used in conjunction with the accumulator can prevent accidental power failure during the use of the suction crane, and can keep the workpiece in the adsorbed state for 5-30 minutes without falling;
Energy storage device:
In the entire absorption process, the existence of the accumulator ensures that the vacuum system has a certain degree of vacuum. When an emergency occurs, such as a sudden power failure, the glass can still maintain the adsorption state with the spreader for a long time without falling off, which can effectively protect the operator.
Alarm device:
The vacuum system is equipped with a vacuum alarm. When the vacuum of the suction cup is lower than the specified value, it will automatically sound an alarm. The alarm is equipped with a battery.
Application
Case 1
A German customer bought our vacuum suction cup for glass installation in a construction site. The suction cup can be hoisted by a crane for work, which is more convenient to use in construction work. The equipment is designed with an energy storage device. If it encounters emergency situations such as sudden power failure during work, it can maintain a long-term adsorption state without falling off, which can fully ensure the safety of the operator.
Case 2
Our customers in Brazil buy our vacuum suction cups for glass installation. The vacuum suction cup can be turned 0-90° and rotated 0-360°, which is more conducive to the installation of the glass by the operator during the work process and improves the work efficiency. Because the customer's work needs to absorb a large area of glass, we have customized the long arm for the customer to meet the customer's work needs.
Features Introduction
Features Introduction:
The one-way valve used in conjunction with the accumulator can prevent the suction crane from accidentally powering off during use, and can keep the workpiece in the adsorption state for 5 to 30 minutes without falling;
The sound and light alarm system is to ensure that the suction crane pressure gauge shows that it can work safely at a standard vacuum degree of 60% or more;
Sucker spring support is to meet the uniform force of the workpiece, and the spring buffer to avoid damage to the workpiece;
Standard configuration manual flip 0°-90°, manual rotation 0-360°
Energy storage device: During the entire absorption process, the presence of the accumulator ensures that the vacuum system has a certain degree of vacuum. When an unexpected situation occurs, such as a sudden power failure, the glass can still maintain the adsorption state with the spreader for a long time without falling off , Can effectively protect the operator.
Alarm device: The vacuum system is equipped with a vacuum alarm. When the vacuum degree of the suction glass is lower than the specified value, it will automatically sound the alarm. The alarm is equipped with a battery.
The combination mode and position of the suction cup can be adjusted to meet the changes of different workpiece sizes. When the glass size is large, you can choose to install an extended arm;
The safety factor is greater than 4.0 times, in line with European safety standards;
Purchase guidance
1. The quality of the workpiece to be transported: determines the size and quantity of the sucker
2. The shape and surface condition of the workpiece to be transported: select the type of suction cup
3. Working environment (temperature) of the workpiece to be transported: select the material of the suction cup
4. The surface height of the workpiece to be transported: determine the buffer distance
5. The basic connection method of the suction cup: suction cup, suction cup seat (injection), spring
Maintenance and repair of glass suction crane
1. Glass suction cup: regularly clean the dust of the suction cup and check whether the suction cup is damaged; if it is not cleaned or inspected, it will cause the suction to be loose and fall off, causing a safety accident;
2. Filter: Clean the dust of the filter element regularly to check whether it is blocked or damaged; if it is not cleaned or inspected, it will cause damage to the filter element or damage to the vacuum pump;
3. Screws and nuts: Regularly check whether the nuts and bolts at the hook and connection are loose; if they are loose, tighten them to avoid potential safety hazards;
4. Vulnerable parts: vacuum suction cups, vacuum pump carbon chips, etc.;
