Mobile platform lift is a newly developed crawler-type scissor platform with outriggers. It relies on the release of the crawler belt from the ground, and the strong ground adhesion ability drives the movement and steering of the self-propelled crawler scissor lift. Mobile platform lift ability to adapt to the environment is particularly strong, and it can perform high-altitude operations in the field without power supply and complex road conditions. It adopts crawler wheels, weights the chassis, and the charging power drive system provides sufficient power for the equipment, and the drive lift is controlled to rise and fall through the control button. Crawler-type lift with outriggers has hydraulic outriggers that automatically retract. After the lift is raised, the outriggers are extended by controlling the lifting buttons of the outriggers to adjust the equipment to the level, which greatly ensures the safety of the working environment. It also makes it easy for mobile platform lift to work on rough roads. At the same time, its crawler wheels increase the contact area with the ground, and it can also walk and work on muddy roads in the field. It is ideal equipment for field high-altitude operations such as oil exploration, field communication line installation and construction. Keywords A, Man Lift Equipment, Shop Crane,
2020 High quality Fire Truck - China Daxlifter Economic Trolley Vacuum Glass Lifter – Daxin Detail:

The indoor glass door is equipped with a suction cup trolley, electric suction and deflation, manual lifting and movement, convenient and labor-saving.This type suction cup trolley cost low but with more efficient working for easy glass handling.if you don’t have enough budget for the project this type glass lifter trolley will be your best choice!

FAQ

Q: What’s the loading capacity of the trolley vacuum glass lifter?

A: Its loading capacity range is 300kg-400kg.

Q: How is the quality of your trolley vacuum glass lifter?

A: Our products have been certified by the European Union, so please feel free to inquire and purchase products.

Q: How is your shipping capacity?

A: We have cooperated with many professional shipping companies for many years, and they will provide us with very good services in terms of ocean transportation.

Q: How do we send an inquiry to your company?

A: Both the product page and the homepage have our contact information. You can click the button to send an inquiry or contact us directly: sales@daxmachinery.com Whatsapp:+86 15192782747

Video

Specifications

Model

/

XPXC300/400

Capacity

kg

300/400

QTY Cup

pcs

2

Capacity for single cup

kg

4/6

Rotation Angle

/

360°

Weight

kg

80/90

Wheel size

mm

350*85

Horizontal Adjustment

mm

100-200mm

Why Choose Us

Our Aluminum Work Platform has high safety and durable quality, providing longer service time and minimum downtime. As a professional manufacturer of scissors sets in northern China, we have provided thousands of scissors sets to the Philippines, Brazil, Peru, Chile, Argentina, Bangladesh, India, Yemen, Saudi Arabia, United Arab Emirates, Malaysia, Thailand and other countries. The safety precautions of the scissor lift are as follows:

Spring support:

The spring buffer prevents the workpiece from being damaged.

Large rotation angle:

Standard configuration manual flip 0°-90°, manual rotation 0-360°.

Optional suction cup material:

According to the different objects that need to be sucked up, choose suckers of different materials.

81

Alarm device:

When the vacuum of the suction cup is lower than the specified value, it will automatically sound an alarm.

Extended arm:

When the glass size is larger, you can choose to install an extension arm.

Compliance with European standards:

The safety factor is greater than 4.0 times, in line with European safety standards;

Advantages

Check valve:

The one-way valve used in conjunction with the accumulator can prevent accidental power failure during the use of the suction crane, and can keep the workpiece in the adsorbed state for 5-30 minutes without falling;

Energy storage device:

In the entire absorption process, the existence of the accumulator ensures that the vacuum system has a certain degree of vacuum. When an emergency occurs, such as a sudden power failure, the glass can still maintain the adsorption state with the spreader for a long time without falling off, which can effectively protect the operator.

Manually turn the suction cup:

Manually flip and rotate suction cup, which is more convenient to adjust the appropriate angle.

Alarm system:

The sound and light alarm system is to ensure that the suction crane pressure gauge can work safely under the standard vacuum degree above 60%;

Application

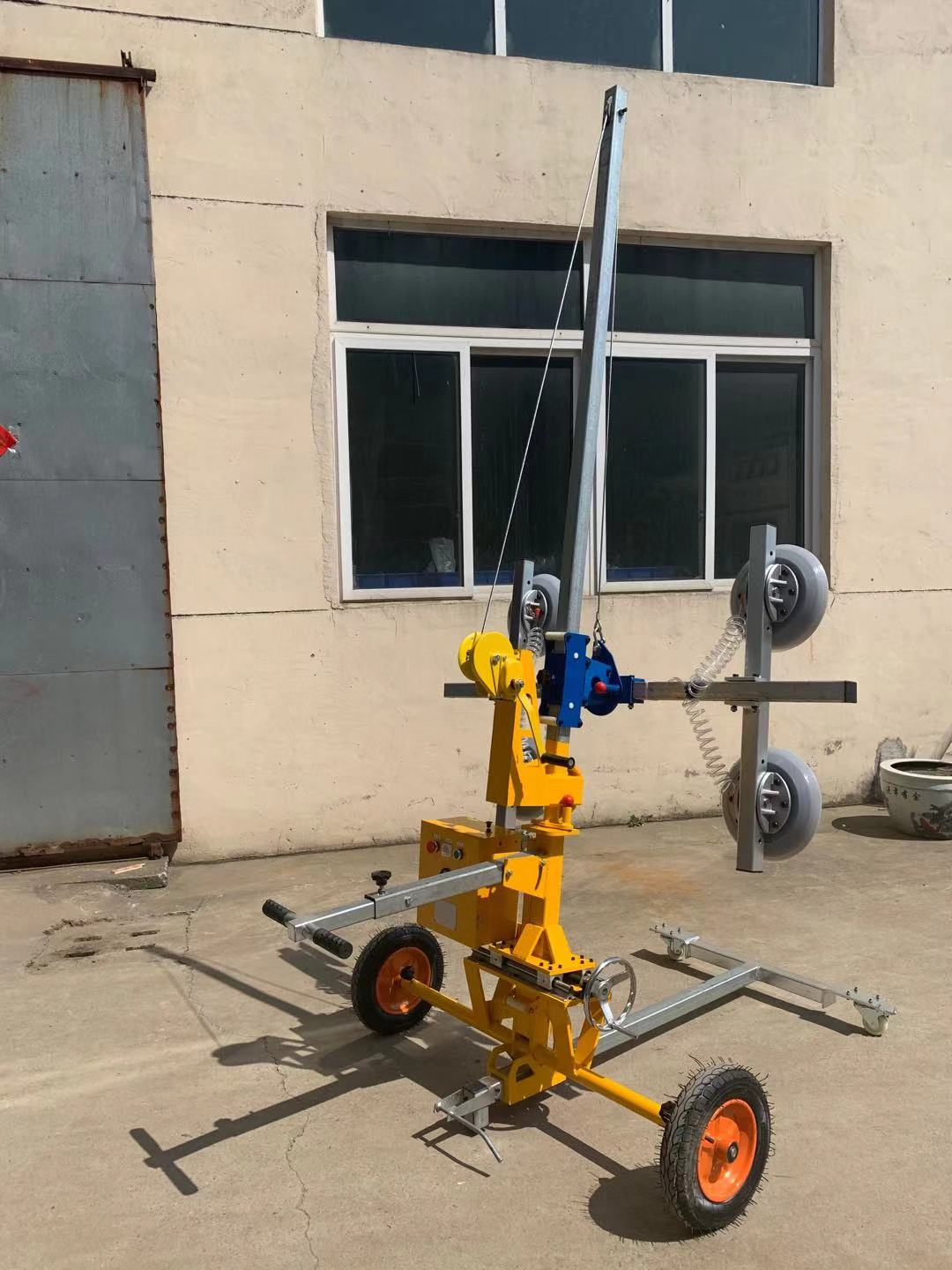

Our Australian customers purchase trolley vacuum glass lifter for simple glass installation at low altitude. Trolley vacuum glass lifter is small in size, light in weight, easy to move, and suitable for carrying it to the small space where you need to work.

82
5
4

Features Introduction:

The one-way valve used in conjunction with the accumulator can prevent the suction crane from accidentally powering off during use, and can keep the workpiece in the adsorption state for 5 to 30 minutes without falling;

The sound and light alarm system is to ensure that the suction crane pressure gauge shows that it can work safely at a standard vacuum degree of 60% or more;

Sucker spring support is to meet the uniform force of the workpiece, and the spring buffer to avoid damage to the workpiece;

Standard configuration manual flip 0°-90°, manual rotation 0-360°

Energy storage device: During the entire absorption process, the presence of the accumulator ensures that the vacuum system has a certain degree of vacuum. When an unexpected situation occurs, such as a sudden power failure, the glass can still maintain the adsorption state with the spreader for a long time without falling off , Can effectively protect the operator.

Alarm device: The vacuum system is equipped with a vacuum alarm. When the vacuum degree of the suction glass is lower than the specified value, it will automatically sound the alarm. The alarm is equipped with a battery.

The combination mode and position of the suction cup can be adjusted to meet the changes of different workpiece sizes. When the glass size is large, you can choose to install an extended arm;

The safety factor is greater than 4.0 times, in line with European safety standards;

Purchase guidance

1. The quality of the workpiece to be transported: determines the size and quantity of the sucker

2. The shape and surface condition of the workpiece to be transported: select the type of suction cup

3. Working environment (temperature) of the workpiece to be transported: select the material of the suction cup

4. The surface height of the workpiece to be transported: determine the buffer distance

5. The basic connection method of the suction cup: suction cup, suction cup seat (injection), spring

Maintenance and repair of glass suction crane

1. Glass suction cup: regularly clean the dust of the suction cup and check whether the suction cup is damaged; if it is not cleaned or inspected, it will cause the suction to be loose and fall off, causing a safety accident;

2. Filter: Clean the dust of the filter element regularly to check whether it is blocked or damaged; if it is not cleaned or inspected, it will cause damage to the filter element or damage to the vacuum pump;

3. Screws and nuts: Regularly check whether the nuts and bolts at the hook and connection are loose; if they are loose, tighten them to avoid potential safety hazards;

4. Vulnerable parts: vacuum suction cups, vacuum pump carbon chips, etc.;

1


Product detail pictures:

2020 High quality Fire Truck - China Daxlifter Economic Trolley Vacuum Glass Lifter – Daxin detail pictures

2020 High quality Fire Truck - China Daxlifter Economic Trolley Vacuum Glass Lifter – Daxin detail pictures

2020 High quality Fire Truck - China Daxlifter Economic Trolley Vacuum Glass Lifter – Daxin detail pictures

2020 High quality Fire Truck - China Daxlifter Economic Trolley Vacuum Glass Lifter – Daxin detail pictures

2020 High quality Fire Truck - China Daxlifter Economic Trolley Vacuum Glass Lifter – Daxin detail pictures

2020 High quality Fire Truck - China Daxlifter Economic Trolley Vacuum Glass Lifter – Daxin detail pictures
